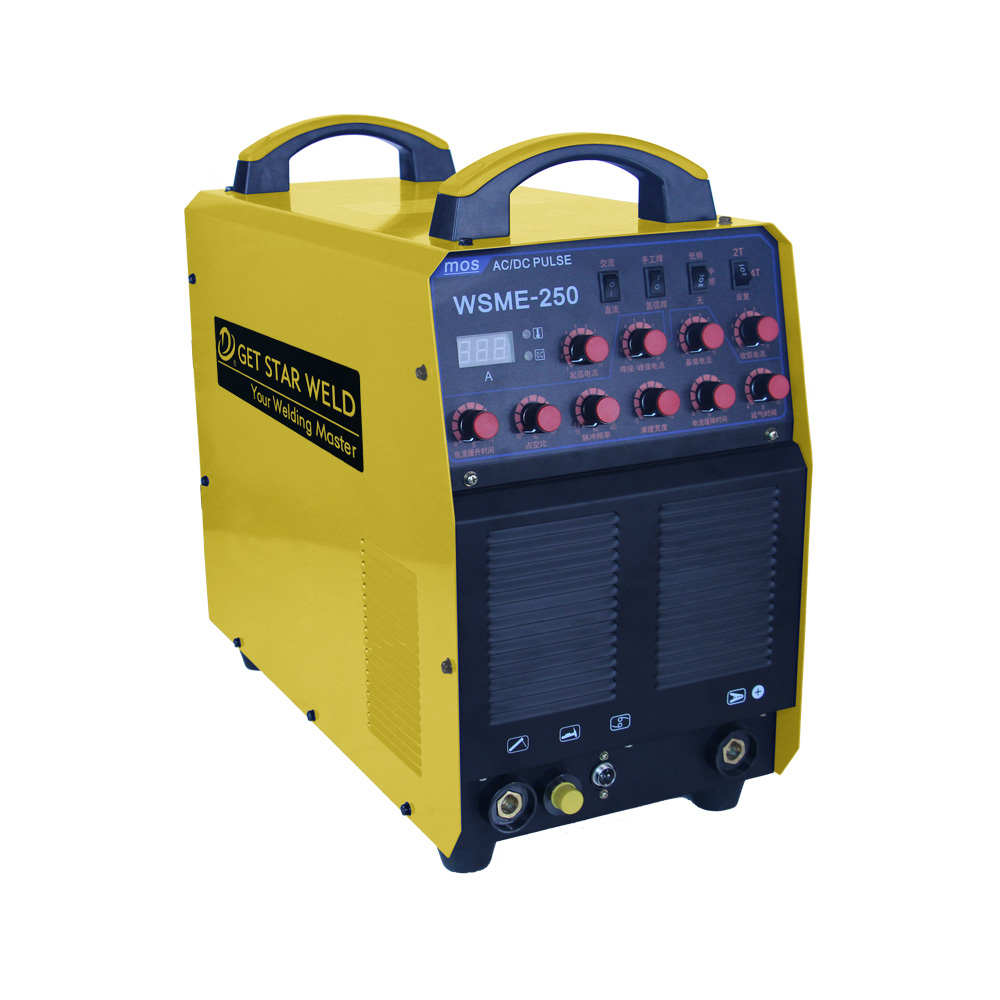

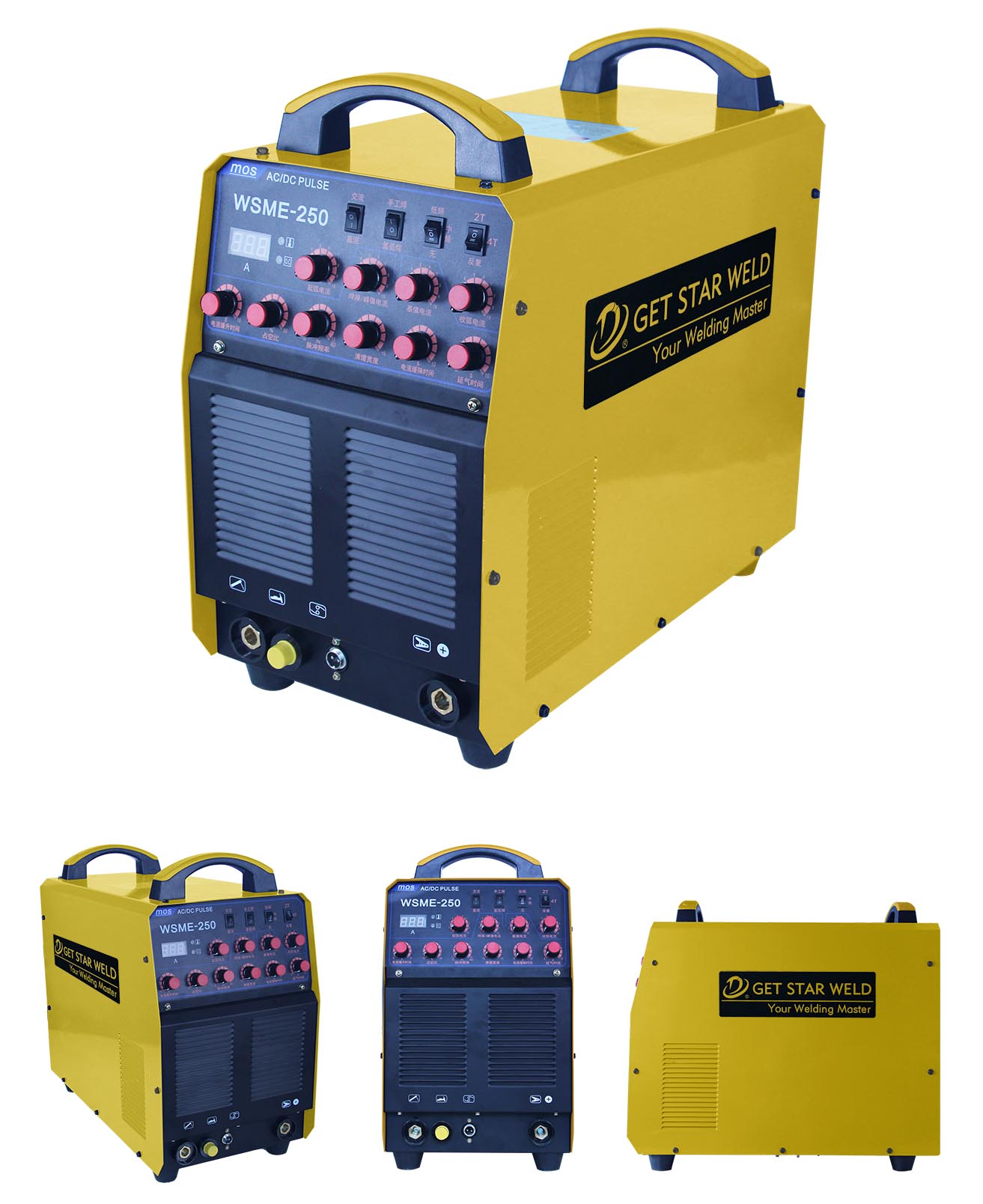

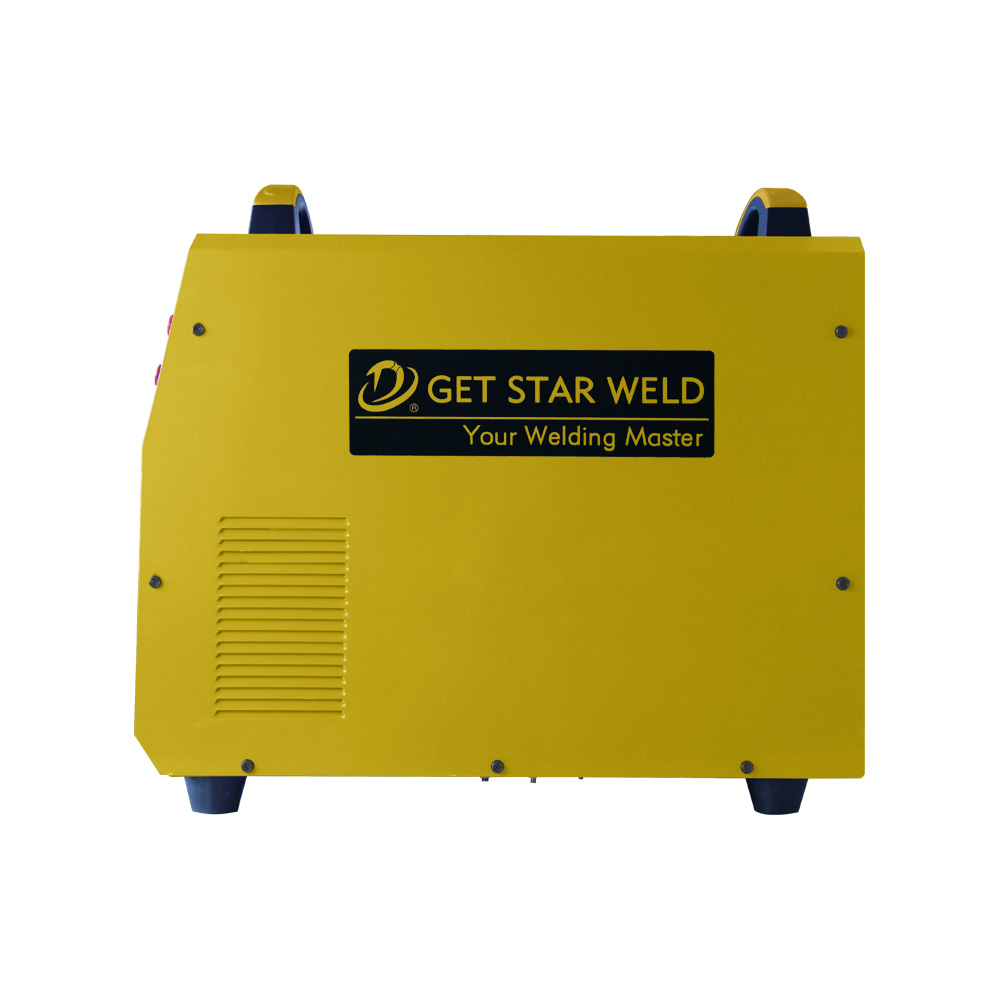

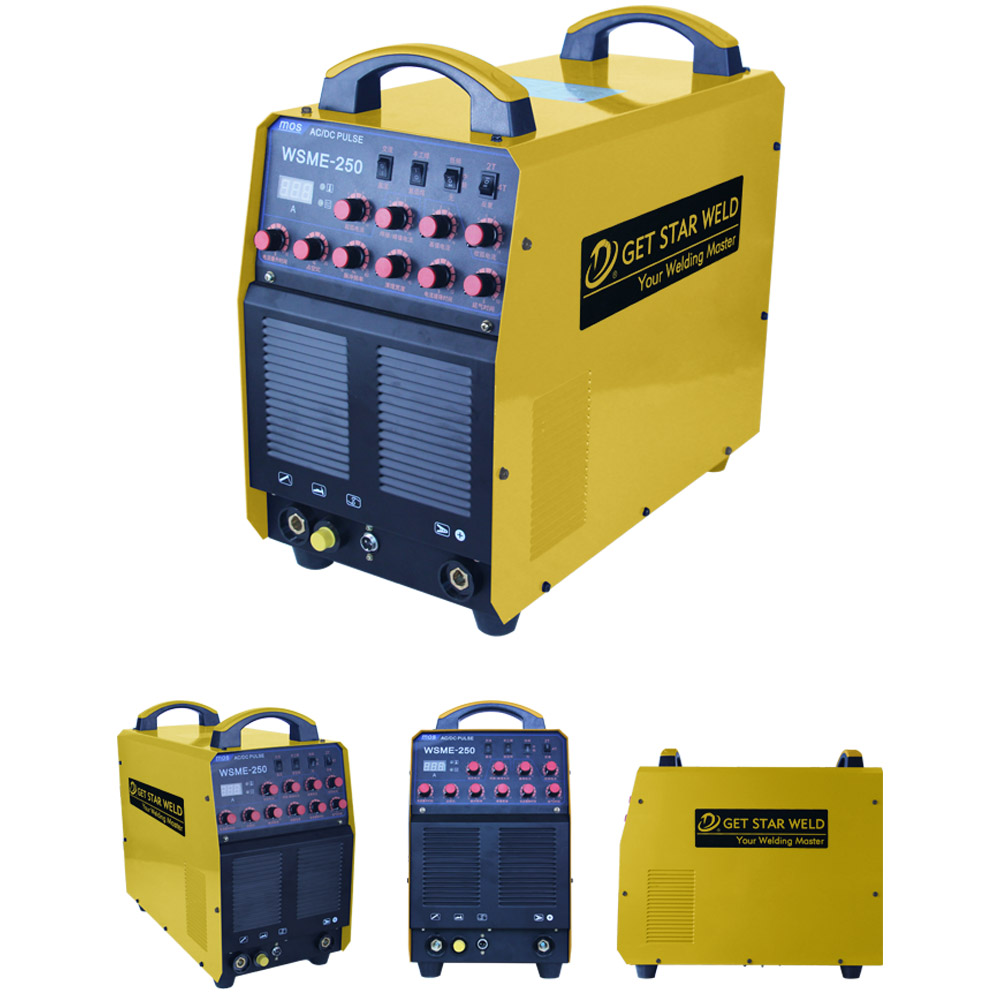

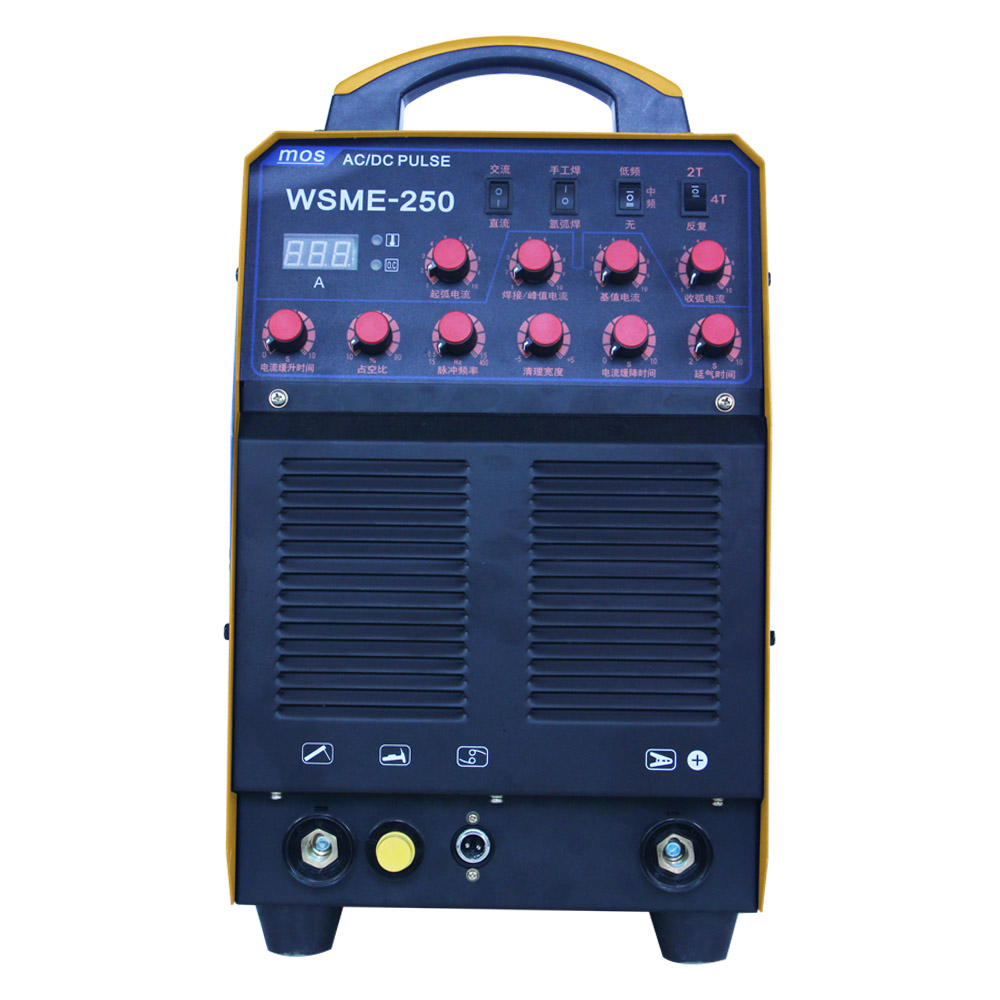

WSME-200 250 MOS 220V single phase

Model and Specifications: WSME-200(10)    WSME-250(10)

Rated input voltage（V）: AC220V    AC220V

Rated input frequency（Hz）: 50/60    50/60

Open circuit voltage（V）:  20    26

Output current control（A）:  20~200    20~250

Rated operating voltage（V）:  18    20

Load duration（%）: 35    35

No-load loss（W）: 80    80

efficiency（%）:  ≧85%    ≧85%

Weight（KG）: 22    24

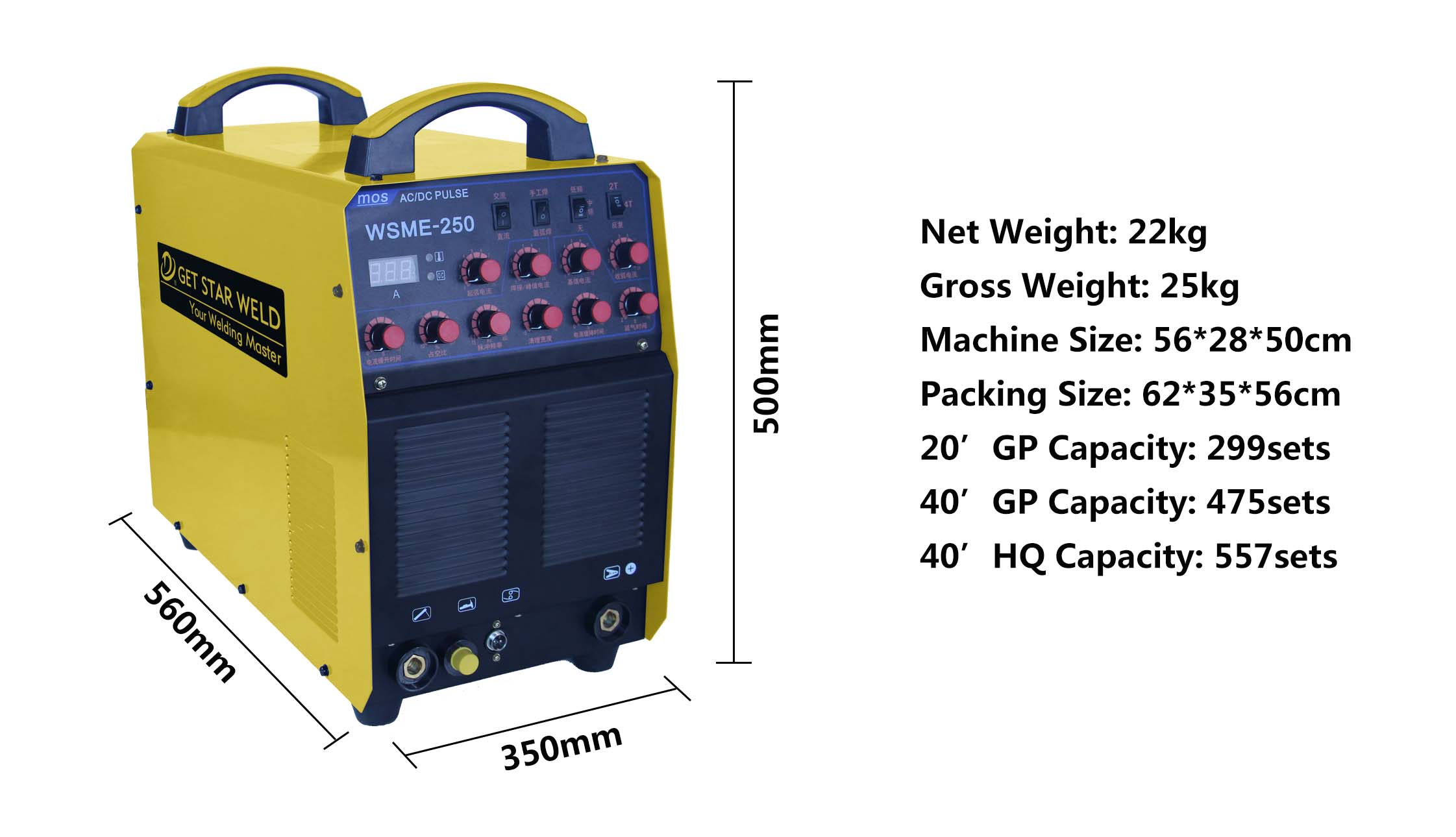

Overall dimension（mm）: 560X280X500    560X280X500
