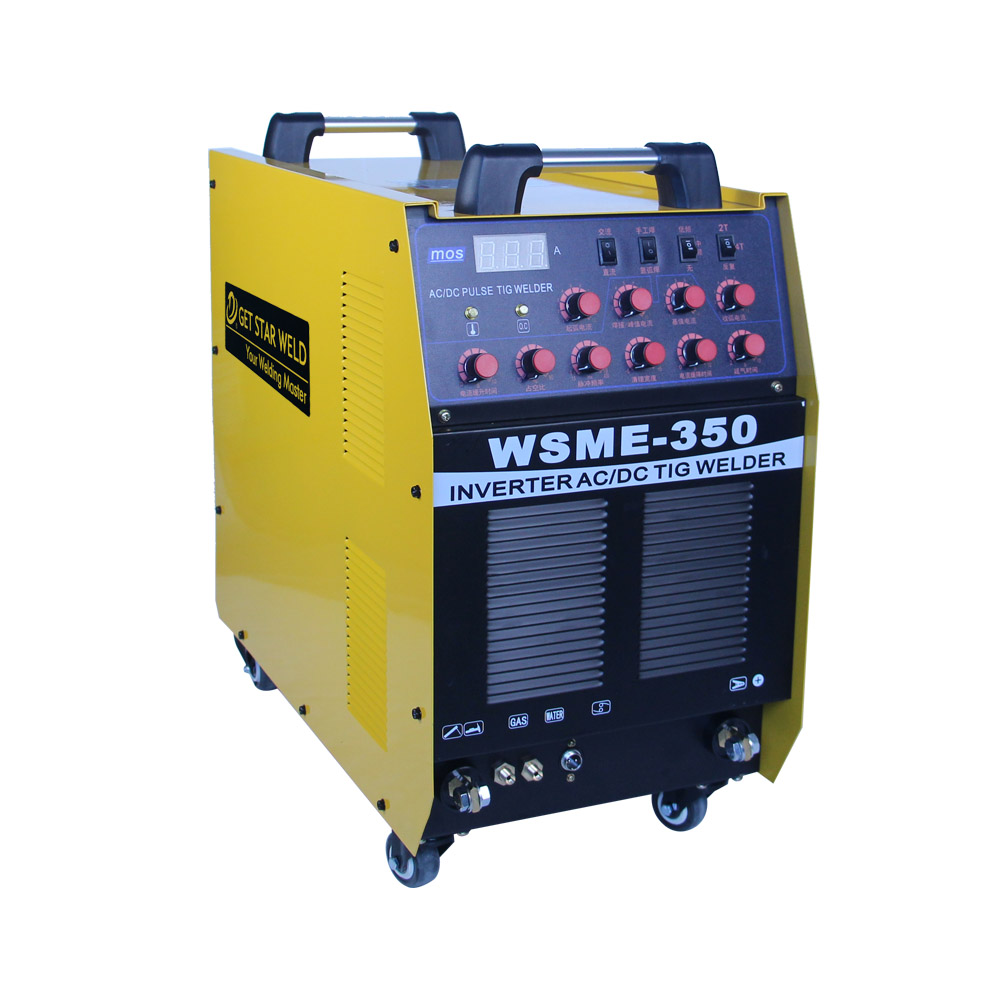

WSME-315 350 MOS 380v three phase

WSME-315 350 MOS 380v three phase

Model and Specifications: WSME-315(11)

Rated input voltage(V): three phase 380V

Rated input frequency (Hz): 50/60

Open circuit voltage (V): 13

Output current control (A): 30~315

Rated operating voltage (V): 22.6

Load duration (%): 60

No-load loss (W): 100

efficiency(%): ≧85%

Weight (KG): 35

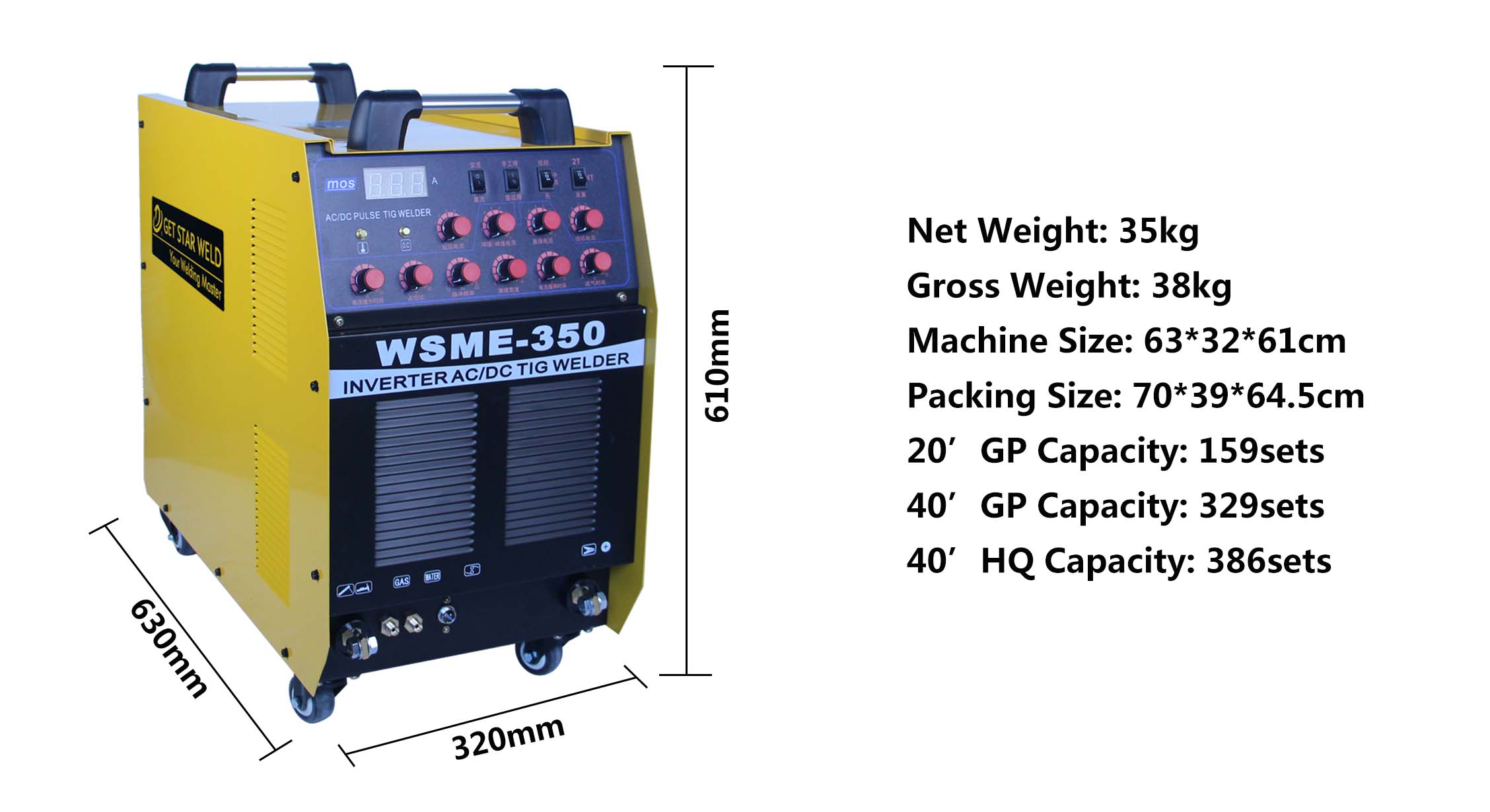

Overall dimension (mm): 630×320×610

WSME-315 350 MOS 380v three phase
Model and Specifications WSME-315(11)
Rated input voltage ( V ) three phase 380V
Rated input frequency ( Hz ) 50/60
Open circuit voltage ( V ) 13
Output current control ( A ) 30~315
Rated operating voltage ( V ) 22.6
Load duration ( % ) 60
No-load loss ( W ) 100
efficiency ( % ) 85%
Weight ( KG ) 35
Overall dimension ( mm ) 630×320×610
