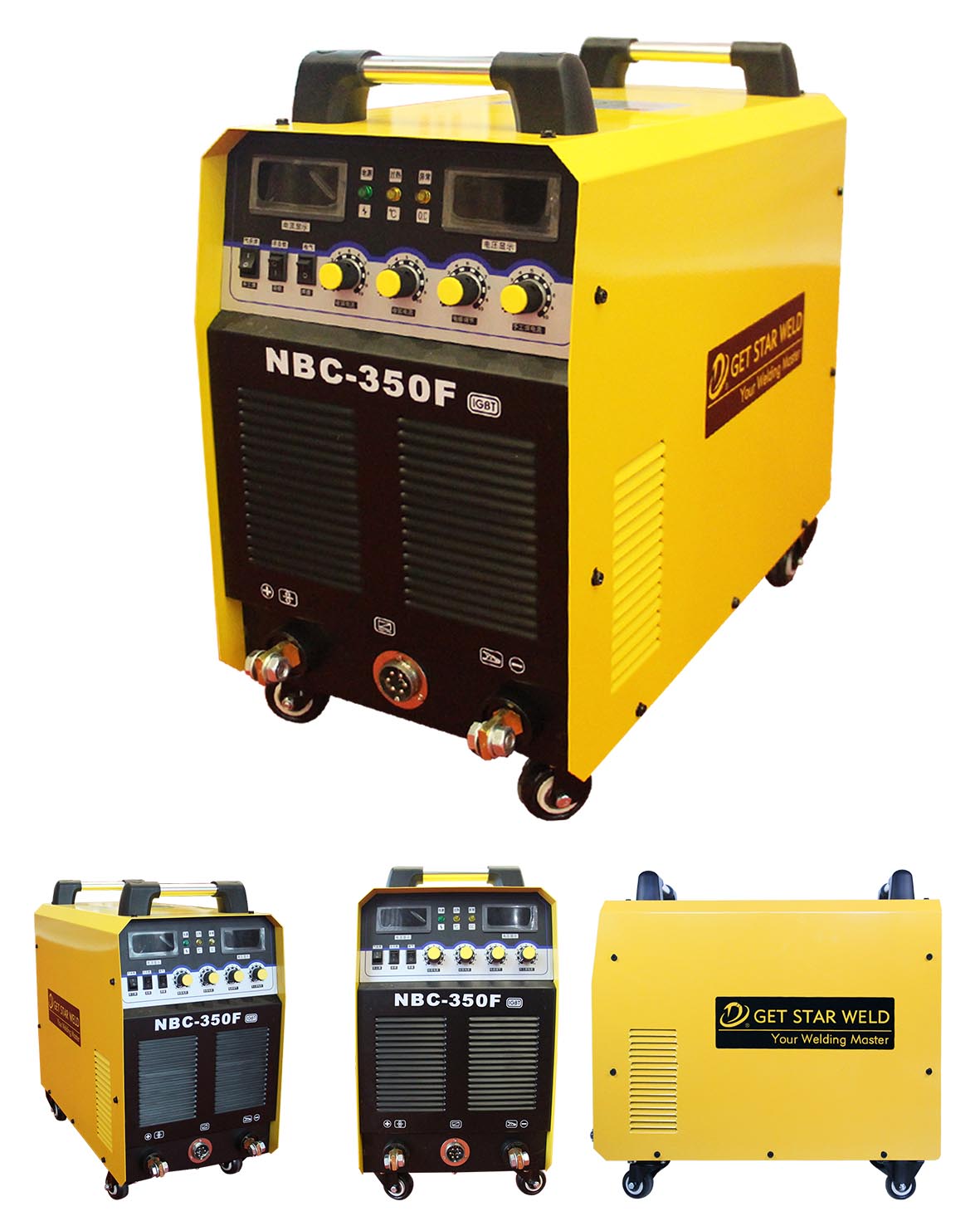

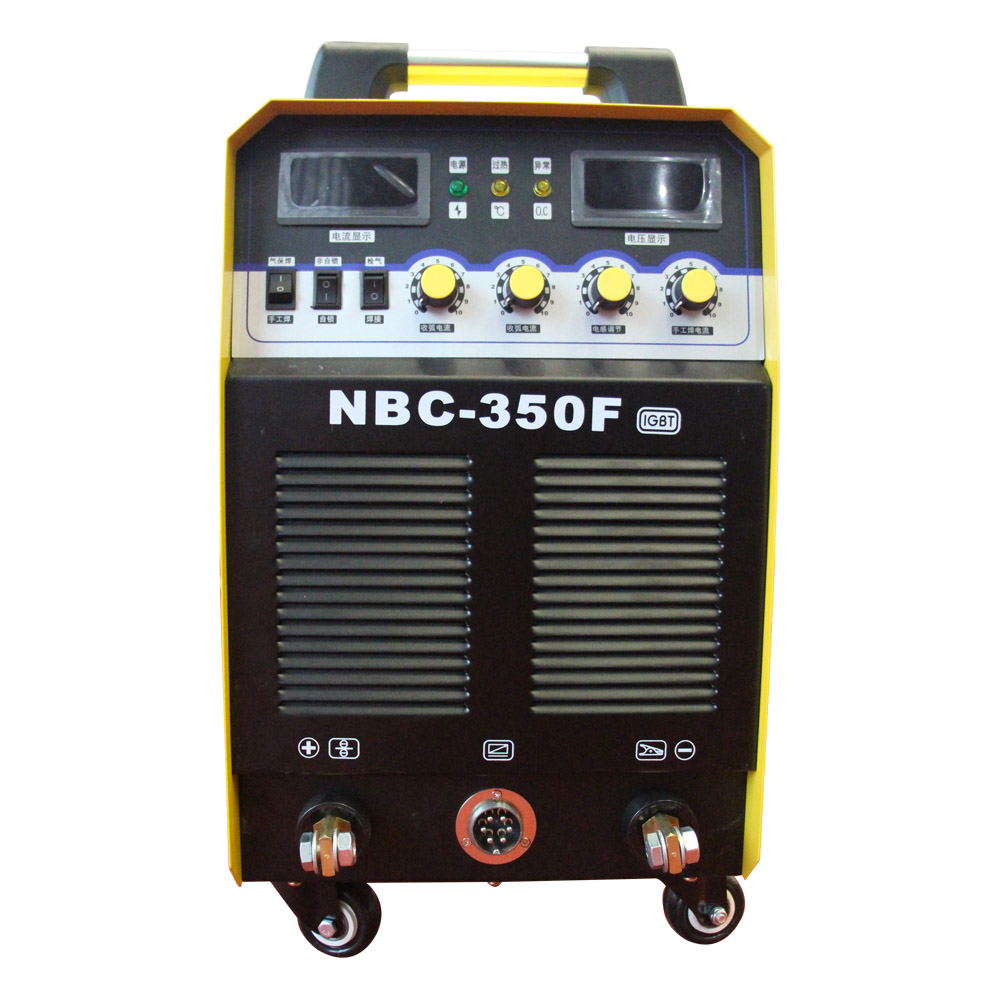

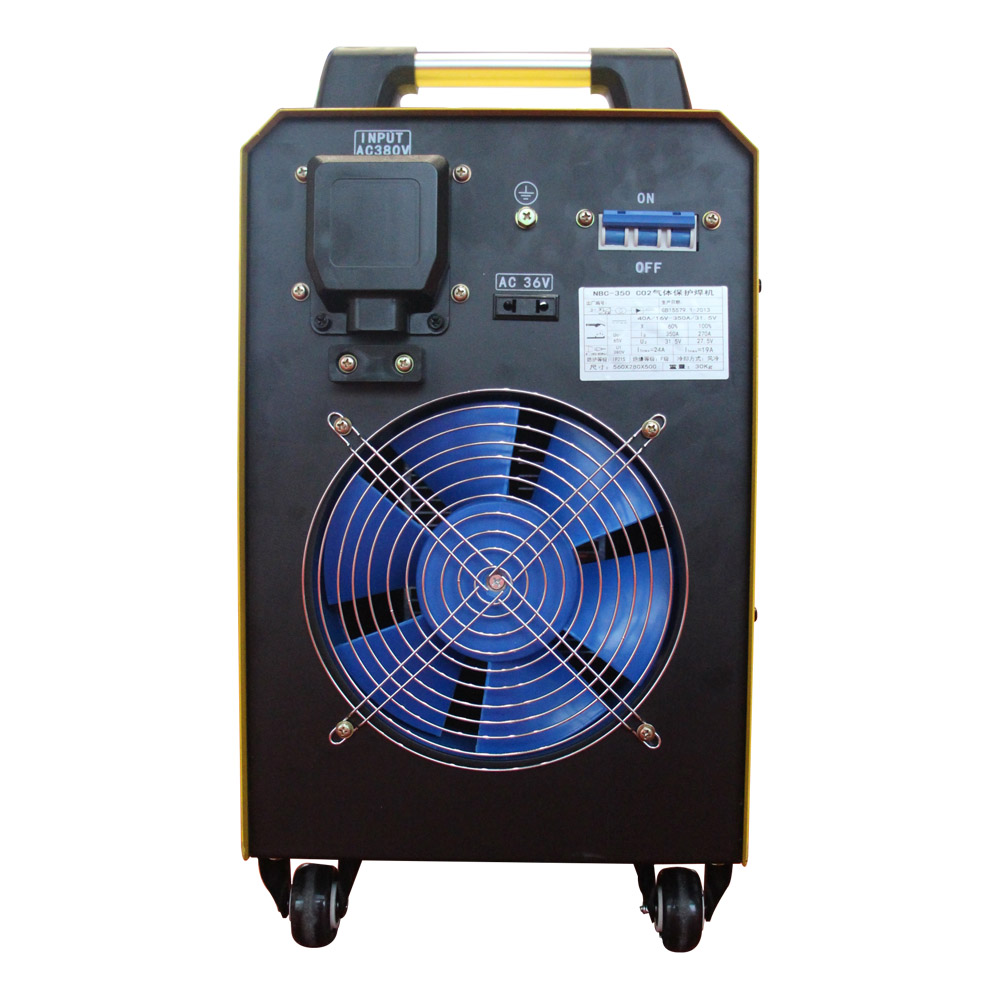

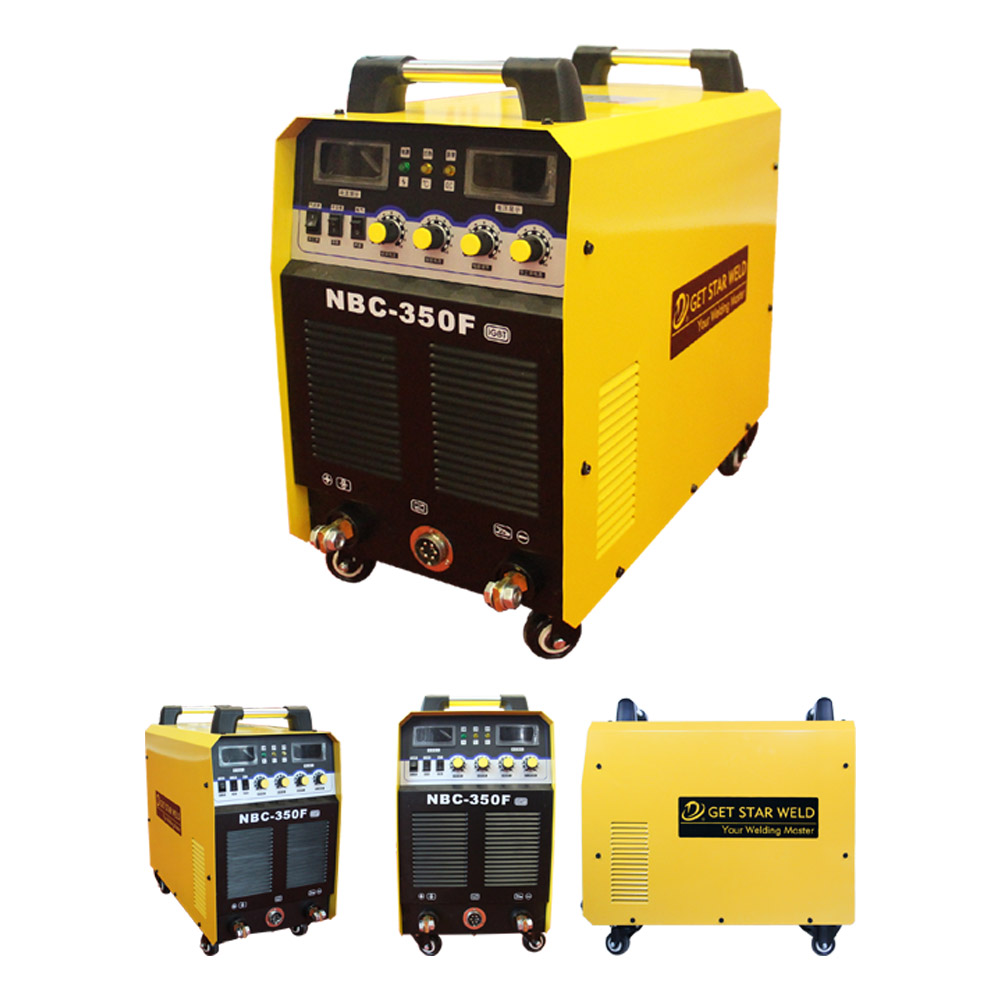

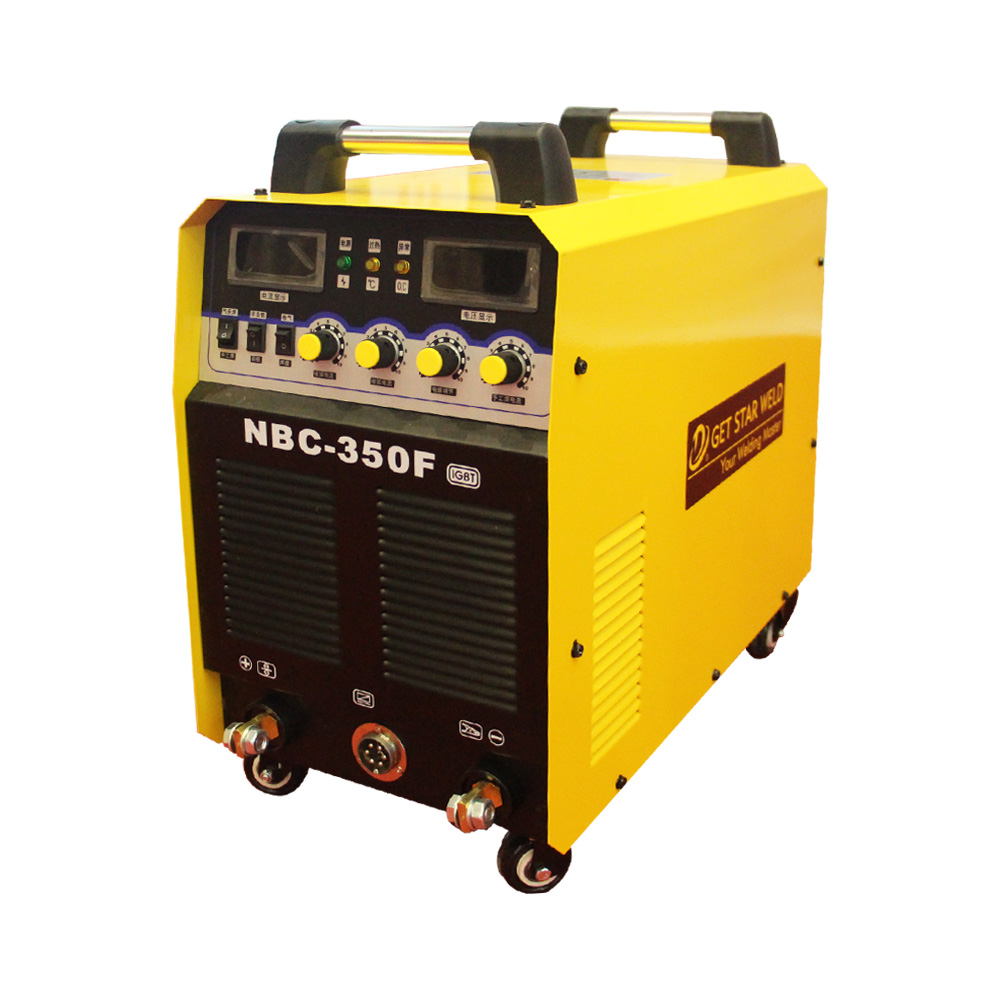

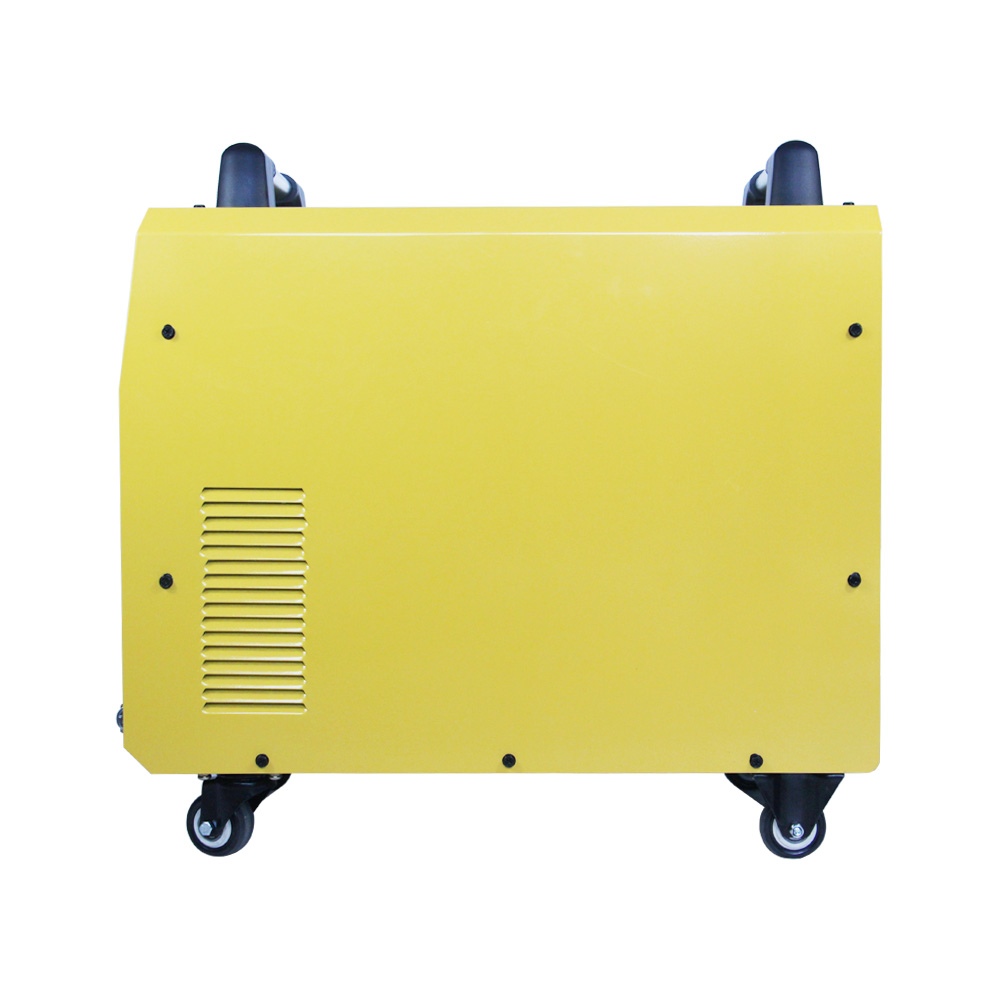

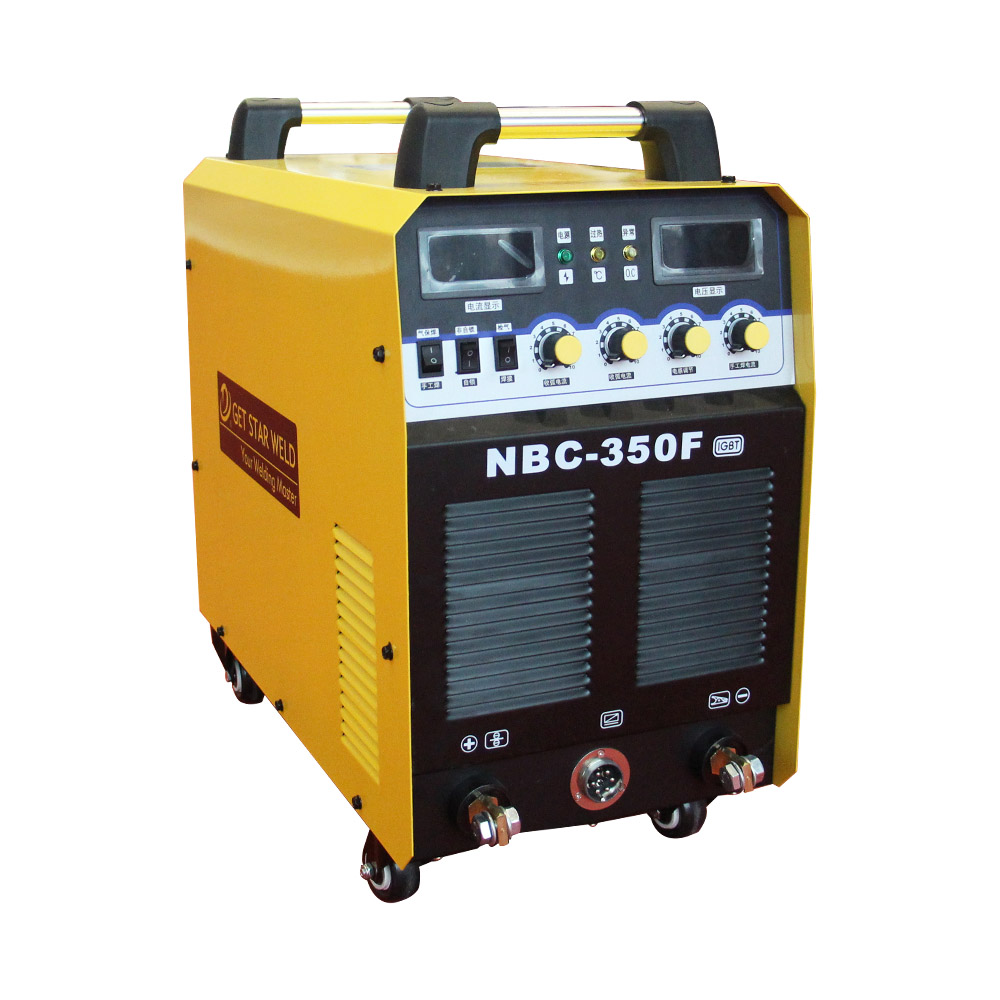

NBC-350F (Single drive wire feeder)IGBT 380V three phase

Name: NBC-350F（14）

Input power voltage: three phase380V±10%/50Hz

Rated input power: 12.8KVA

Rated input current: 19A

Rated load duration: 60%

Output current adjustment range: 60～350A

Output voltage regulation range: 17～31.5V

Output no-load voltage: 60V

efficiency（%）: ≧85%

The model of Wire Feeder: F(seperate bodies)

Diameter of Wire : Ф0.8～Ф1.2mm

Weight（KG）:  28Kg

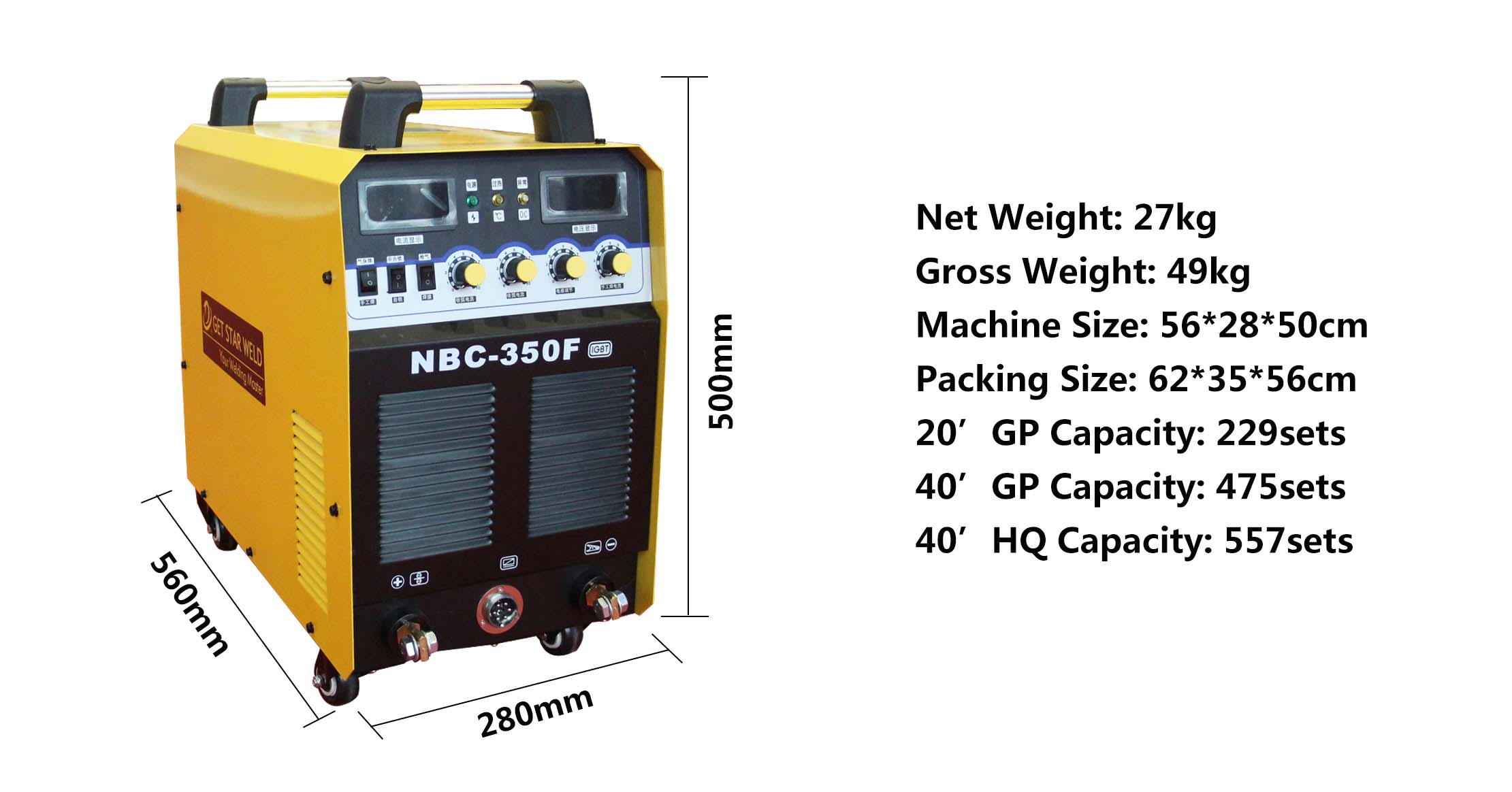

Overall dimension（mm3）: 560×280×500
