NBC-315F（Single drive wire feeder）IGBT 380v three phase

Name: NBC-315F(13)

Input power voltage: three phase380V±10%/50Hz

Rated input power: 9.9KVA

Rated input current: 15A

Rated load duration: 60%

Output current adjustment range: 50～315A

Output voltage regulation range: 16.5～29.7V

Output no-load voltage: 50V

efficiency（%）:≧85%

The model of Wire Feeder: F(seperate bodies)

Diameter of Wire: Ф1.0～Ф1.0mm

Weight（KG）: 20Kg

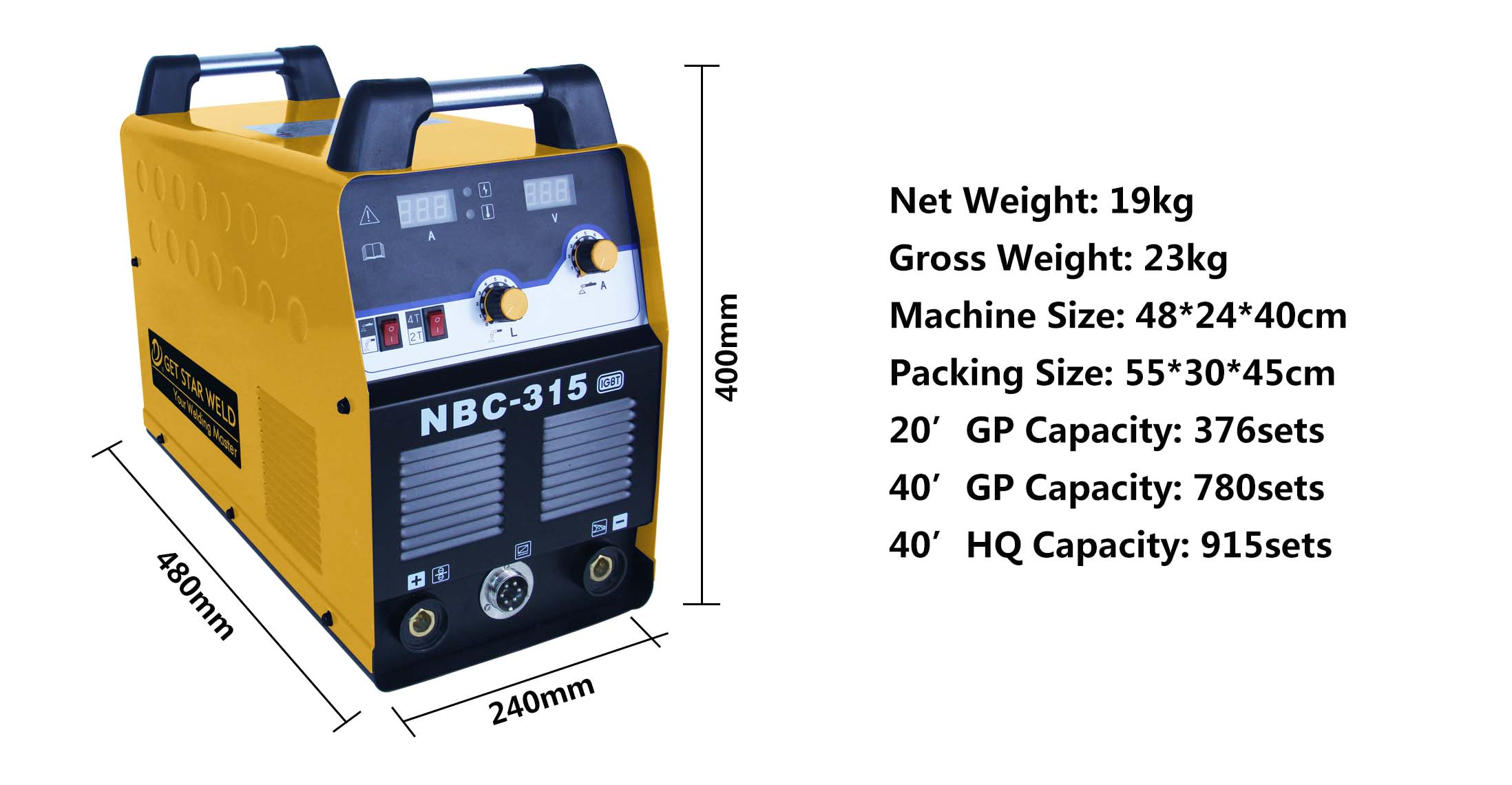

Overall dimension（mm3）: 480×240×400
