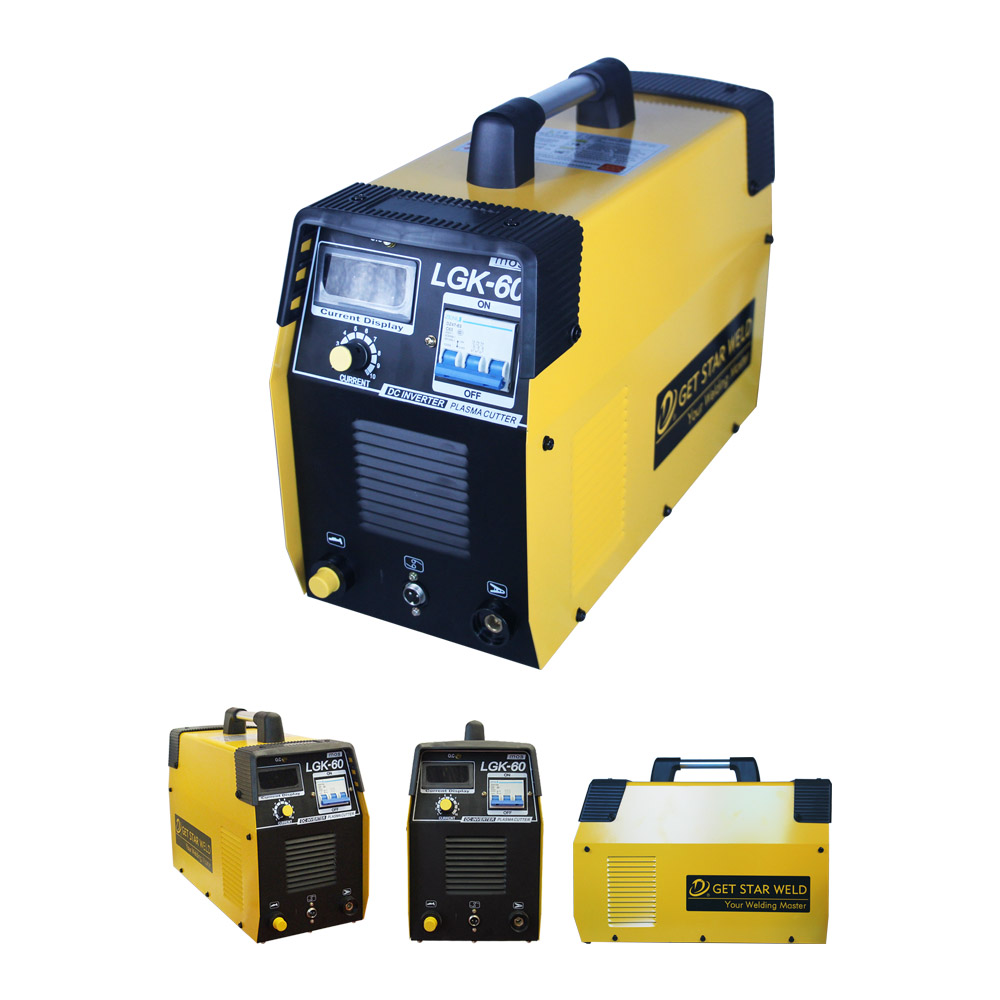

LGK-60（dual voltage) MOS 220v380v single phase
name: LGK-60S（2）
Input power voltage: 380V/220V±10%/50Hz
Rated input power: 7.8KVA
Rated load duration: 60%
the range of output current adjustment: 25～60A
the range of Output voltage adjustment: 90～112V
No-load voltage: 270V
the qulity tickness of cutting(steel): 0.3-12
the maximun tickness of cutting(steel): 20
Use plasma gas: Compressed air
Air pressure: 0.4～0.5MPa
Torch cooling method: air cooled
Arc start mode: contact arc starting
Machine Weight: 13Kg

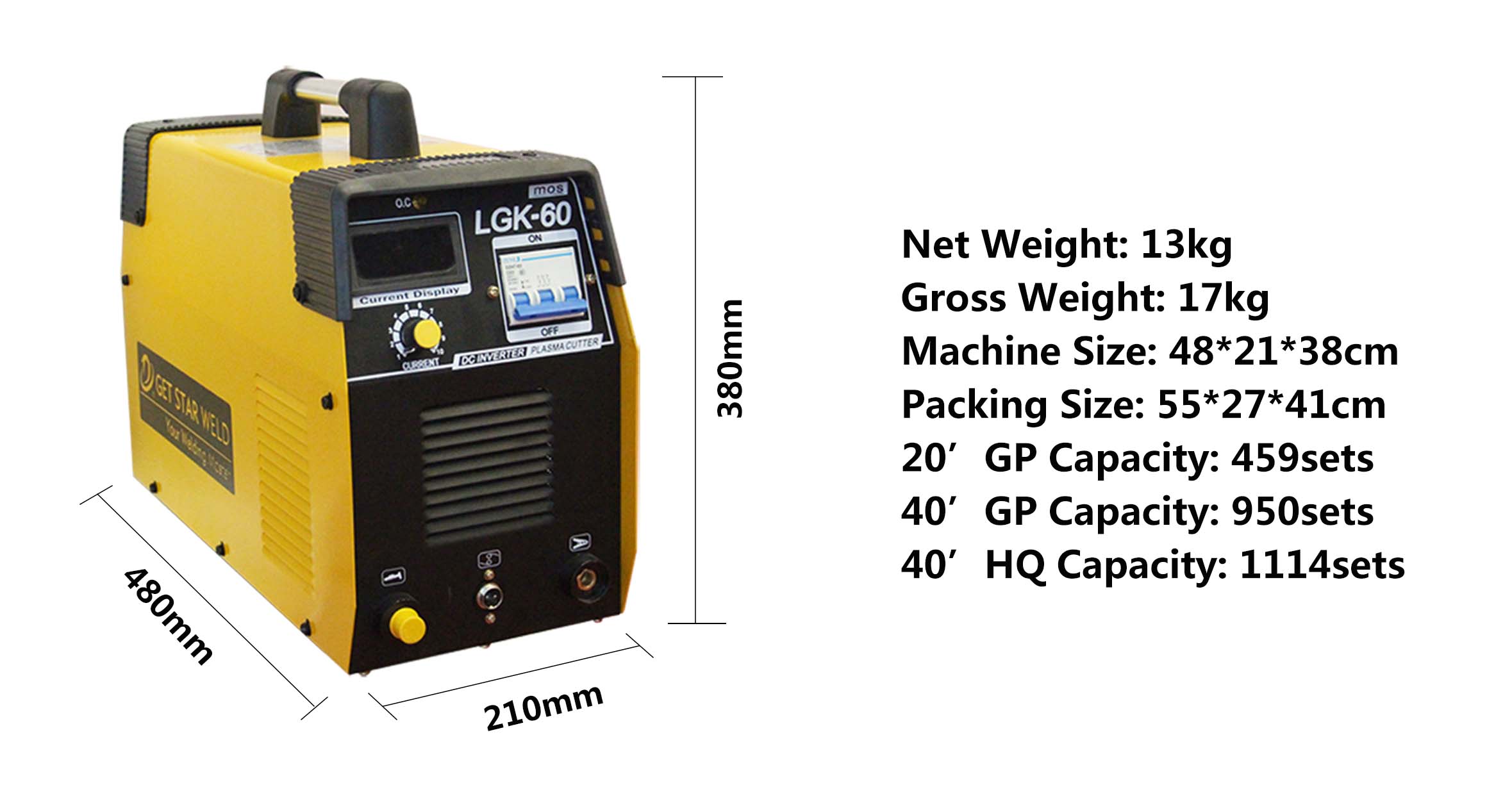

Overall dimension（mm3）: 480×210×380
| LGK-60（dual voltage) MOS 220v380v single phase | |
| name | LGK-60S（2） |
| Input power voltage | 380V/220V±10%/50Hz |
| Rated input power | 7.8KVA |
| Rated load duration | 60% |
| the range of output current adjustment | 25～60A |
| the range of Output voltage adjustment | 90～112V |
| No-load voltage | 270V |
| the qulity tickness of cutting(steel) | 0.3-12 |
| the maximun tickness of cutting(steel) | 20 |
| Use plasma gas | Compressed air |
| Torch cooling method | 0.4～0.5MPa |
| Torch cooling method | air cooled |
| Arc start mode | contact arc starting |
| Machine Weight | 13Kg |
| Overall dimension（mm3） | 480×210×380 |
