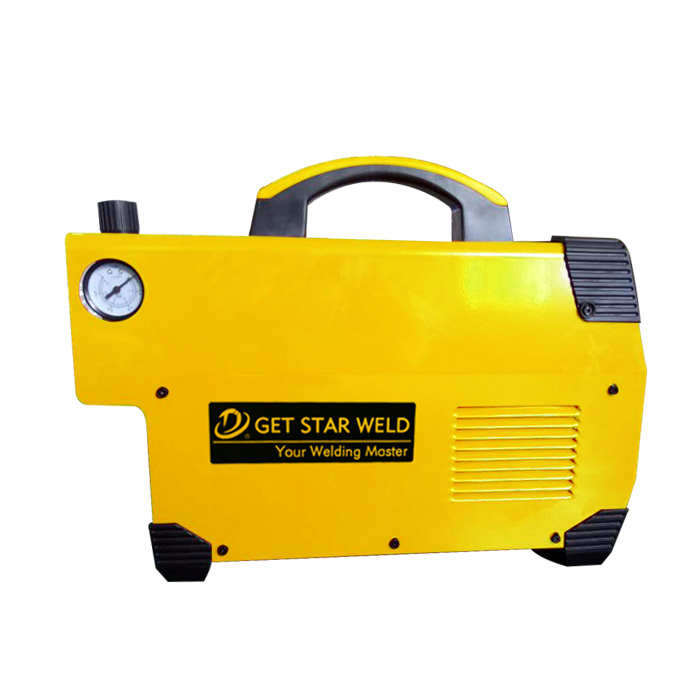

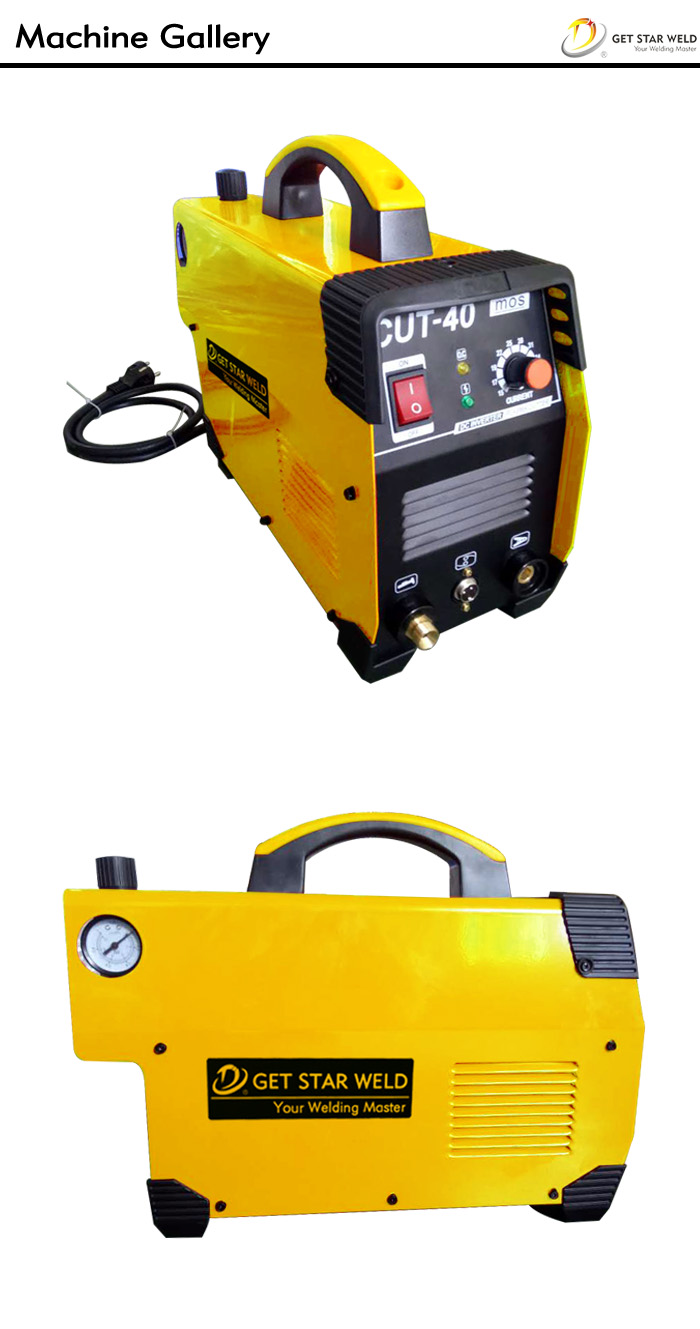

LGK-40 MOS 220V single phase

name: LGK-40（1）

Input power voltage: 220V±10%/50Hz

Rated input power: 4.8KVA

Rated load duration: 60%

the range of output current adjustment: 20～40A

the range of Output voltage adjustment: 88～96V

No-load voltage: 270V

the qulity tickness of cutting(steel): 0.3-6

the maximun tickness of cutting(steel): 10

Use plasma gas: Compressed air

Air pressure: 0.4～0.5MPa

Torch cooling method: air cooled

Arc start mode:  contact arc starting

Machine Weight: 8Kg

Overall dimension（mm3）: 360×160×310
