LGK-100 IGBT module 380v three phase

name: LGK-100IGBT(4)

Input power voltage: three phase 380V±10%/50Hz

Rated input power: 14.5KVA

Rated load duration: 60%

the range of output current adjustment: 25～100A

the range of Output voltage adjustment: 90～120V

No-load voltage: 320V

the qulity tickness of cutting(steel): 0.3-24

the maximun tickness of cutting(steel): 40

Use plasma gas: Compressed air

Working gas pressure range: 0.4～0.5MPa

Torch cooling method: air cooled

Arc start mode: Non-conctact

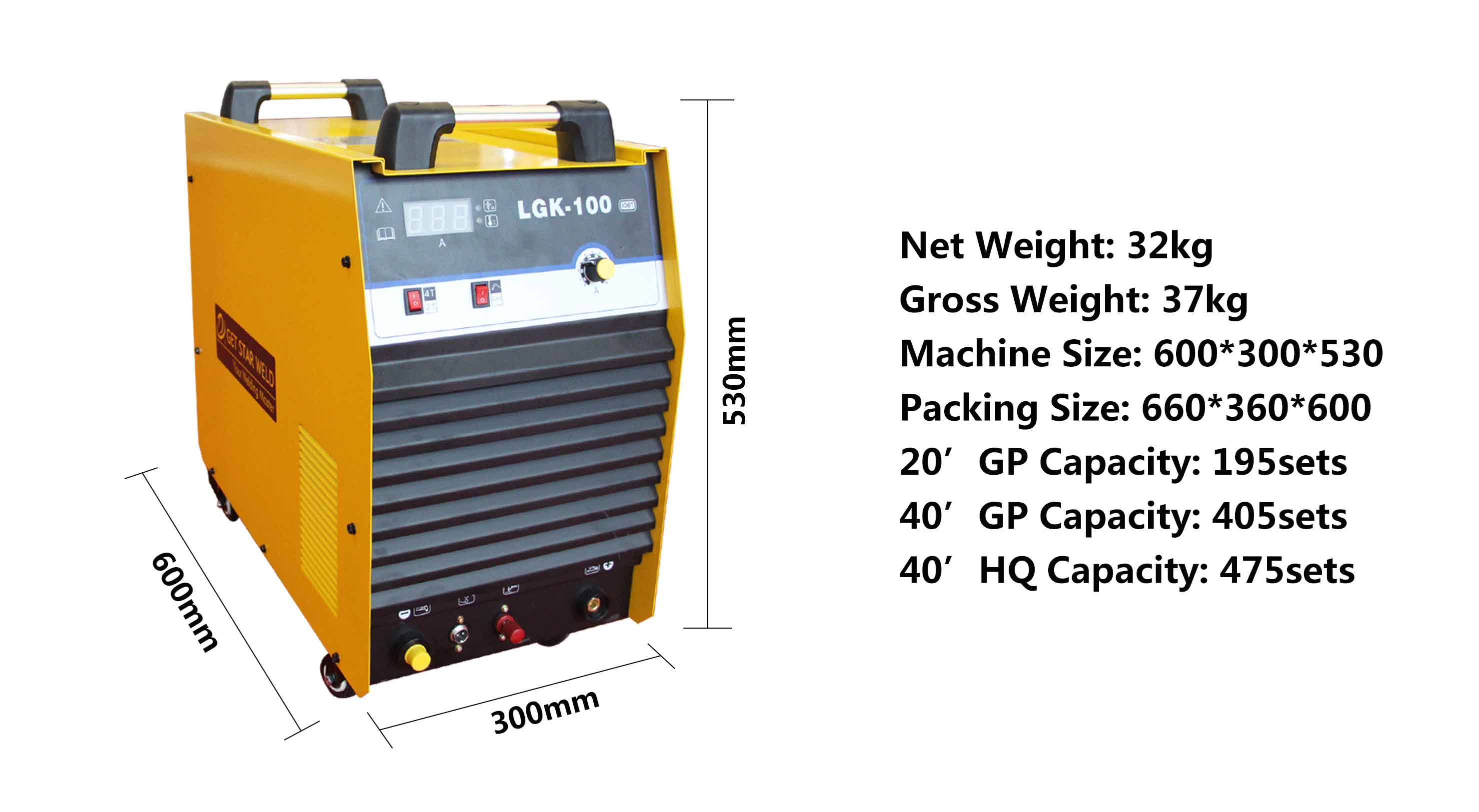

Machine Weight: 32Kg

Overall dimension（mm3）: 600×300×530
