Get Star Weld WP-26 Hand-held Air Cooled TIG Welding Torch

WP-26

Product Parameters

WP-26

200 amp DC, 150 amp AC (60% duty cycle)
Electrode Range:0.5-4.0mm
Length: 3m,5m or as required









Senior Micro Switch,

Excellent consumable life.

140x140
140x140





Ergonomically Superior Handle Designs.

Handles are created with user comfort inmind,minimizes operator fatigue and withstands continuous, heavy-duty welding applications.

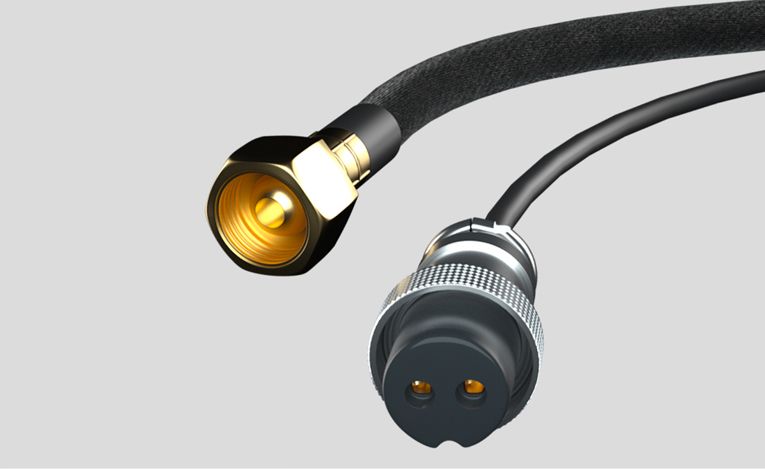

Superior end-connector.

Effectively extend service life, not reconciled to ordinary.

140x140
140x140







Hoses and Cable Supports.

Get star hose and cable are designed to ensure flexibility and durability even under extreme conditions.







Wide Selection of Accessories,

High-quality,precision machined collets,colletbodies, and nozzle complement each torch series.

140x140

Product Detail

We can supply any cable termination according to customer request.

The Product Style
Torch Complete Part Number
WP-18 Torch(Gas and Power Integrated) 4M GSW-TIG-AP-12006-8
WP-18 Torch(Gas and Power Integrated) 8M GSW-TIG-AP-12008-8

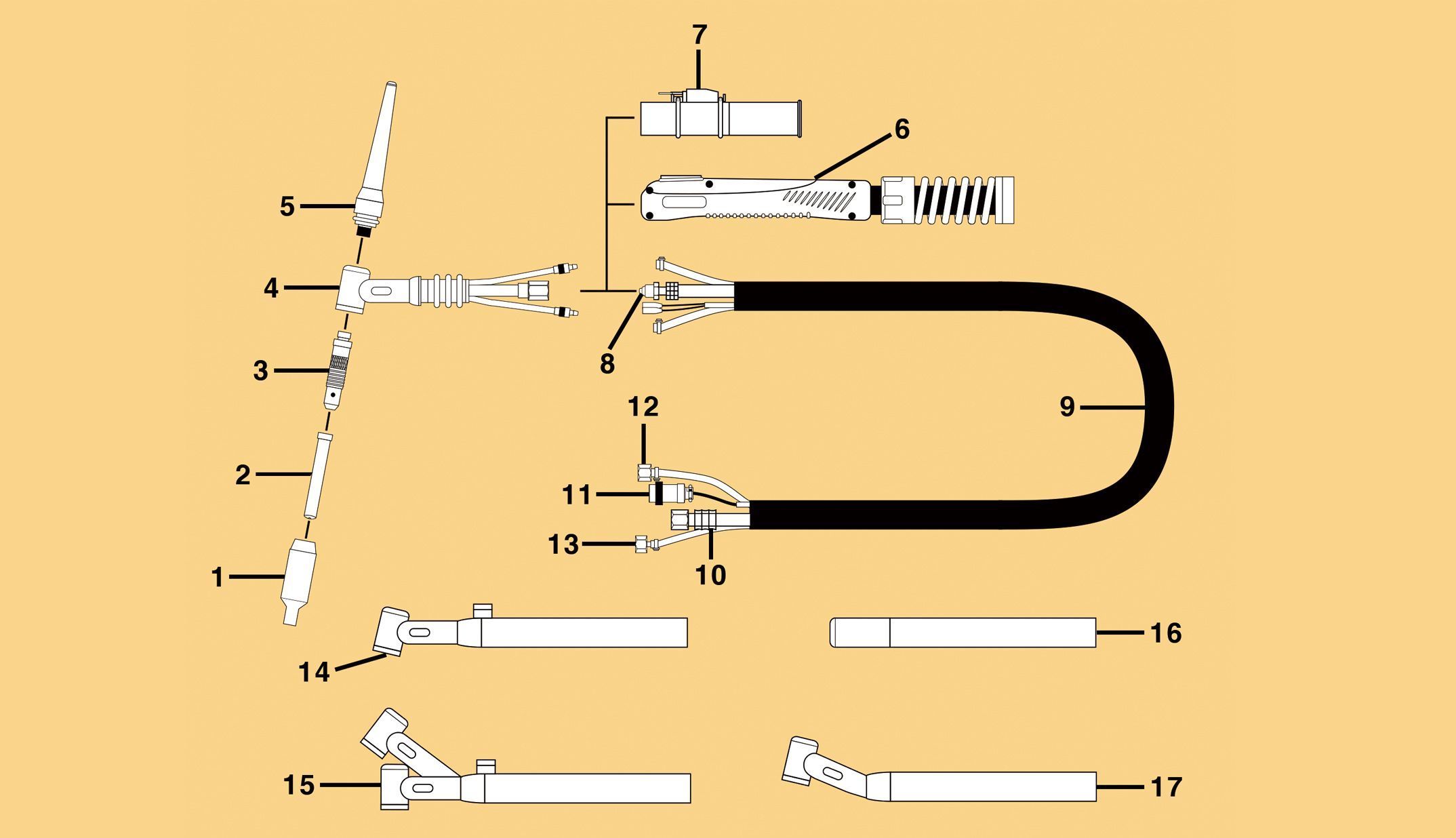

No. Description Part Number
1 Ceramic Nozzle (#4#5#6#7#8) GSW-TIG-AP-20001/2/3/4/5
2 Collet (1.6/2.0/2.4/3.0/3.2/4.0) GSW-TIG-AP-30001/2/3/4/5/6
3 Collet Body (1.6/2.0/2.4/3.0/3.2/4.0) GSW-TIG-AP-40001/2/3/4/5/6
4 Torch Body GSW-TIG-AP-60013
5 Long Back Cap GSW-TIG-AP-11001
6 Handle NEP-TIG-AP-16004
7 Switch GSW-TIG-AP-15001
8 Top Connector(Φ8,Φ10) NEP-OTH-AP-17003/4
9 Cable Assembly
10 F Torch Body NEP-TIG-AP-60002
11 M16*1.5 Bottom Connector NEP-OTH-AP-170023+17029
12 2 Pin Plug NEP-OTH-AP-29001
13 P Torch Body NEP-TIG-AP-60036
14 V Torch Body NEP-TIG-AP-60013
15 FV Torch Body NEP-TIG-AP-60014
16 M10*1 Water  Connector NEP-OTH-AP-170062+17065
17 12*1 Gas  Connector NEP-OTH-AP-170063+17064

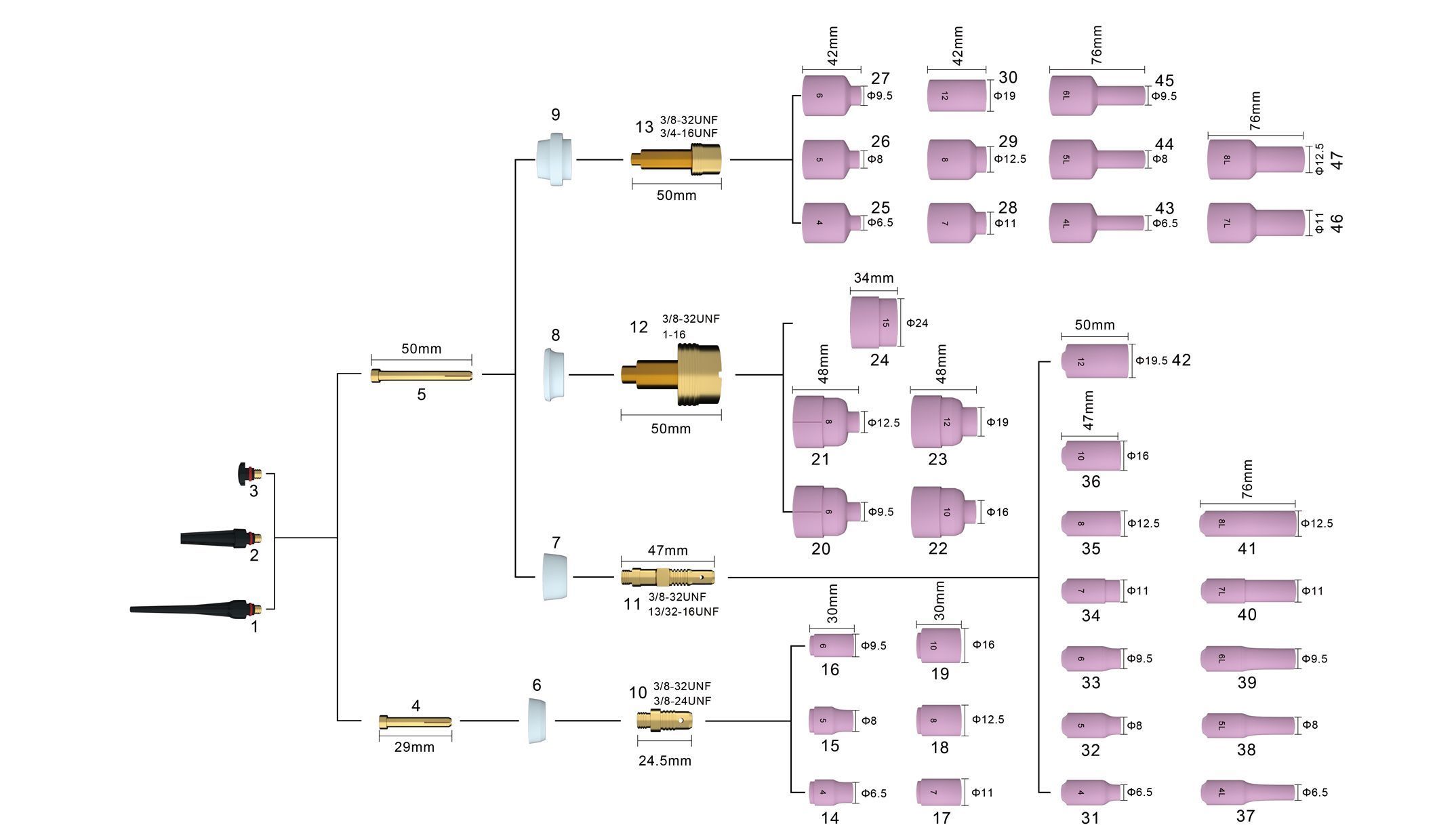

WP-17,18,26 Wear Parts
