Get Star Weld EURO GSW-24KD Air Cooled MIG/MAG Welding Torch

EURO 24KD

Product Parameters

EURO 24KD

Compatible Torch and Parts for BINZEL
Rating:250A CO2/220A Mixed Gases
Duty Cycle:60%
Wire Size:0.8-1.2mm
Length: 3m,5m or as required

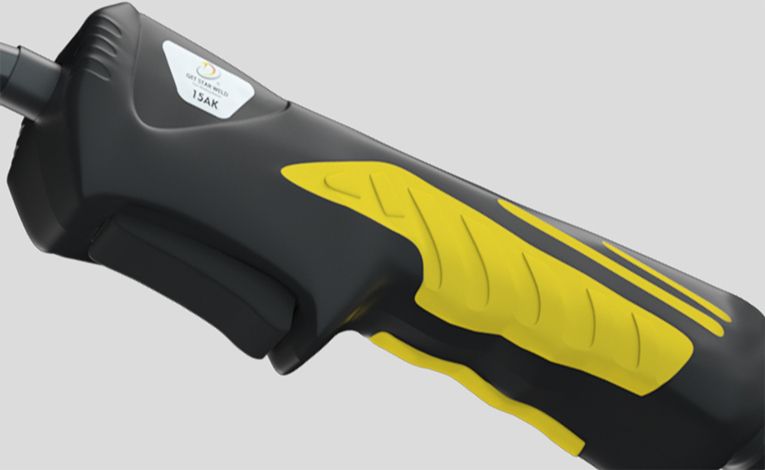

Comfort Grip Head Design,

Ergonomic contact points for thumb and fingers.Provides a more comfortable grip and reduce operator fatigue.

140x140
140x140

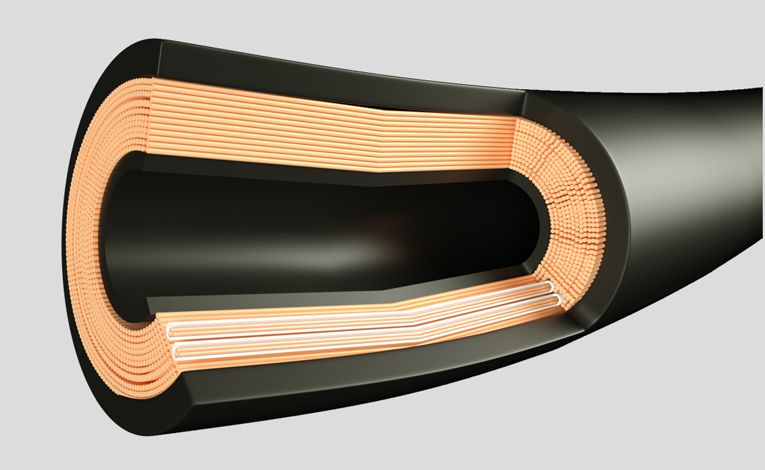

Sufficient Heavy-duty Cable and Copper Construction.

Ensure flexibility and durability even under extreme conditions.
Highly conductive copper components ensure superior current carrying capacity and effectively dissipate heat for longer trouble-free performance.

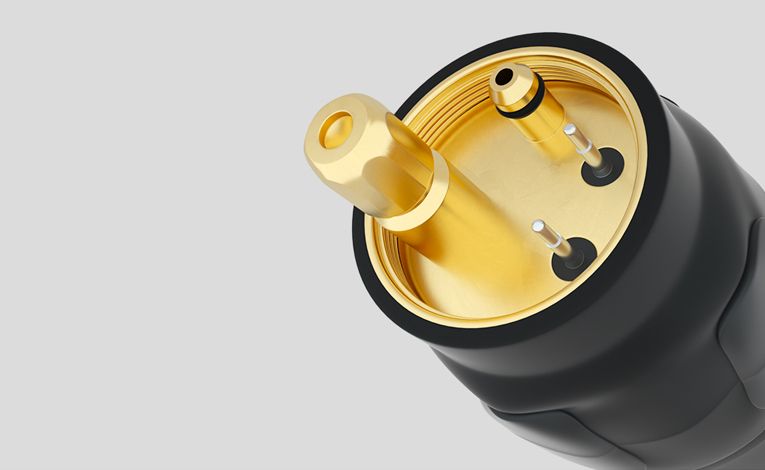

Premium Quality End Connector

To improve gas seal integrity in gas applications, the Euro end connector has been redesigned.

140x140
140x140

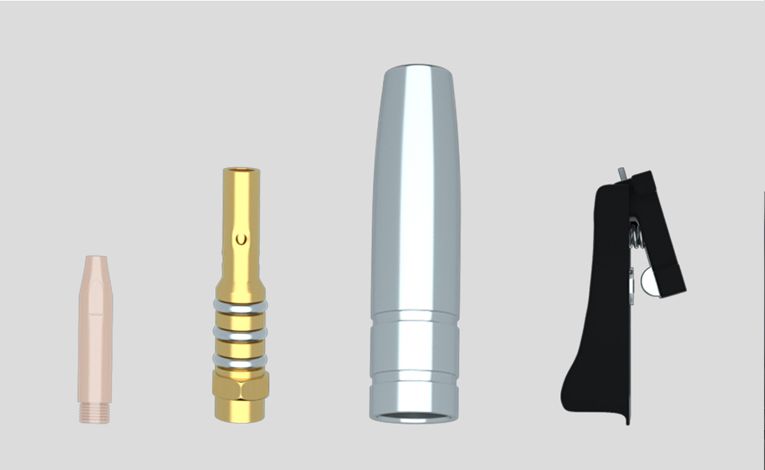

Superior Parts.

Conductor,switch,gas nozzle,contact tip,swan neck are all superior quality.long life service. save repair costs.

Product Detail



The Product Style
Torch Complete Handle Part Number
GSW 24KD 3M Yellow-Black Type GSW-MIG-AP-10004
GSW 24KD 4M Yellow-Black Type GSW-MIG-AP-10005
GSW 24KD 5M Yellow-Black Type GSW-MIG-AP-10006

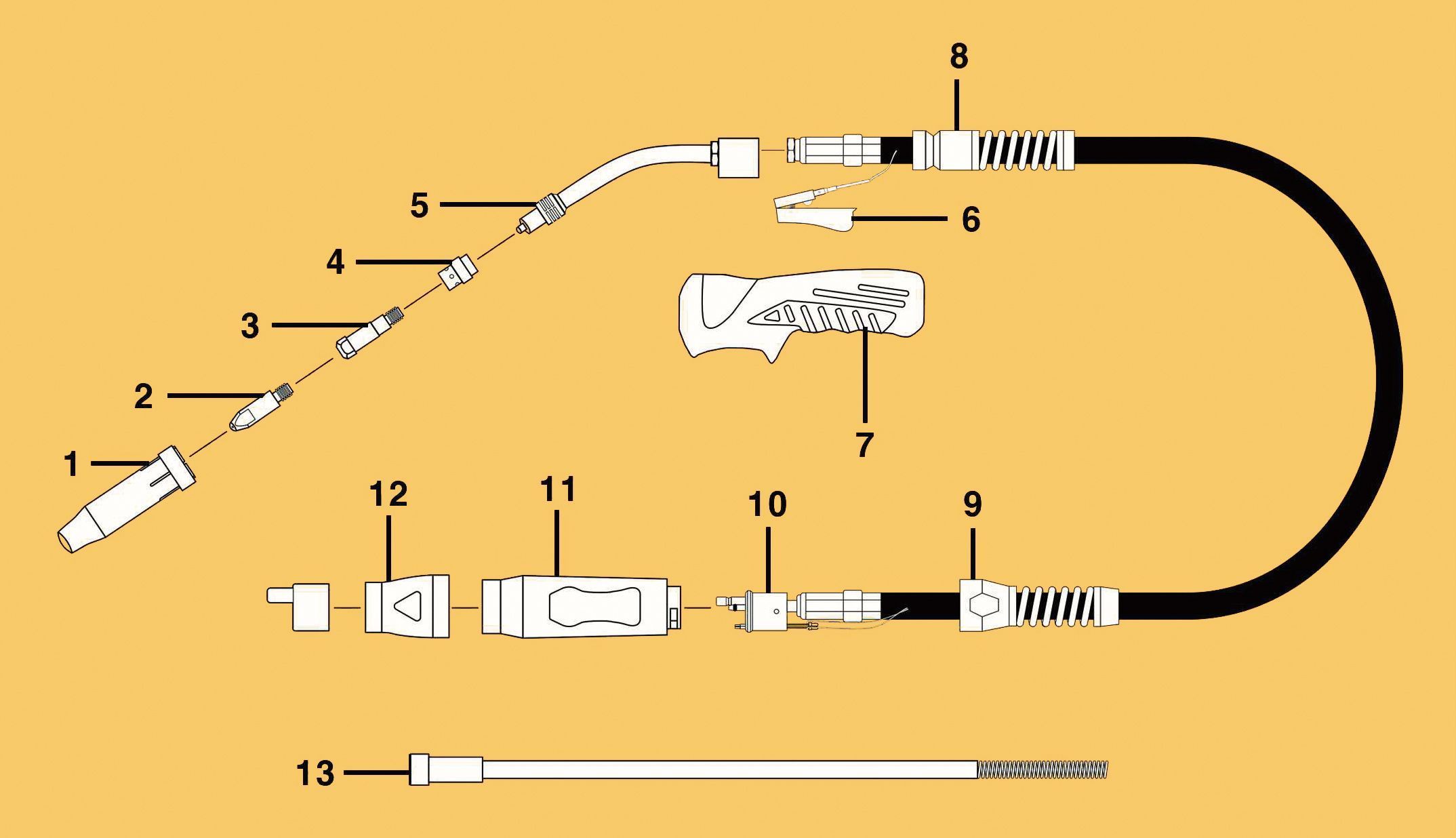

No. Description Part Number
1 Gas Nozzle GSW-MIG-AP-20011
2 Contact Tip GSW-MIG-AP-30010
3 Contact Tip Holder GSW-MIG-AP-40006
4 Gas Diffuser GSW-MIG-AP-70001
5 Swan Neck NEP-MIG-AP-60015
6 Switch NEP-MIG-AP-12018
7 Front Handle NEP-MIG-AP-12006
8 Front Cable Support NEP-MIG-AP-12025
9 Back Cable Support NEP-MIG-AP-12026
10 Euro Central Connector Plug NEP-MIG-AP-16004
11 Back Handle NEP-MIG-AP-12021
12 Adaptor Nut NEP-MIG-AP-12024
13 Liner GSW-MIG-AP-80005

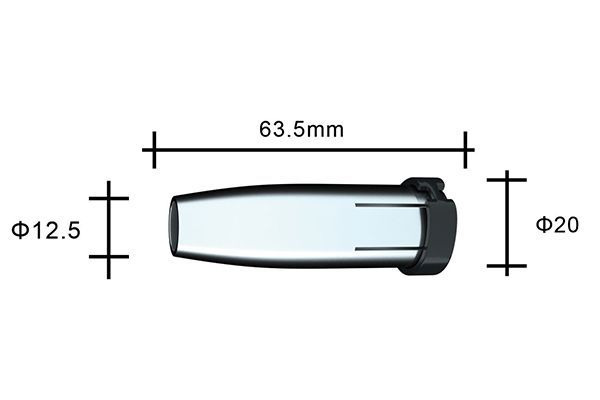

Gas Nozzle(5pcs/Bag)
Size Description Part Number
Φ17 Cylindrical Nozzle GSW-MIG-AP-20045
Φ12.5 Conical Nozzle GSW-MIG-AP-20011
Φ10 Tapered Nozzle GSW-MIG-AP-20056

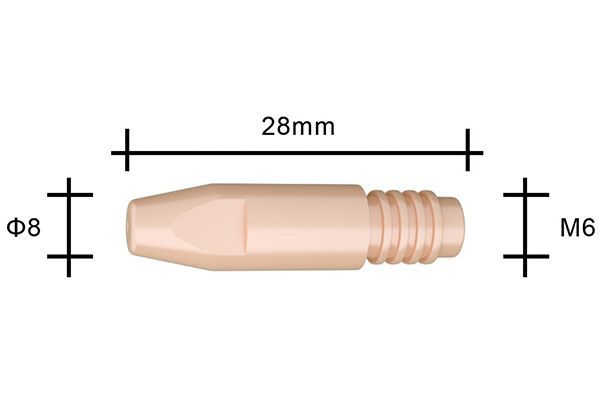

Contact Tip E-cu(50pcs/Bag)
Description Part Number
M6*28*Φ0.8  Contact Tip  E-Cu GSW-MIG-AP-30010
M6*28*Φ0.9  Contact Tip  E-Cu GSW-MIG-AP-30011
M6*28*Φ1.0  Contact Tip  E-Cu GSW-MIG-AP-30012
M6*28*Φ1.2  Contact Tip  E-Cu GSW-MIG-AP-30013
M6*28*Φ1.6  Contact Tip  E-Cu GSW-MIG-AP-30030
Optional for CuCrZr Material

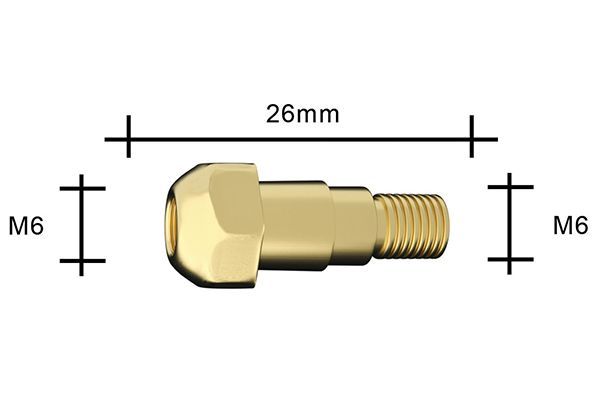

Gas Nozzle Holder(20pcs/Bag)
Part Number GSW-MIG-AP-40006

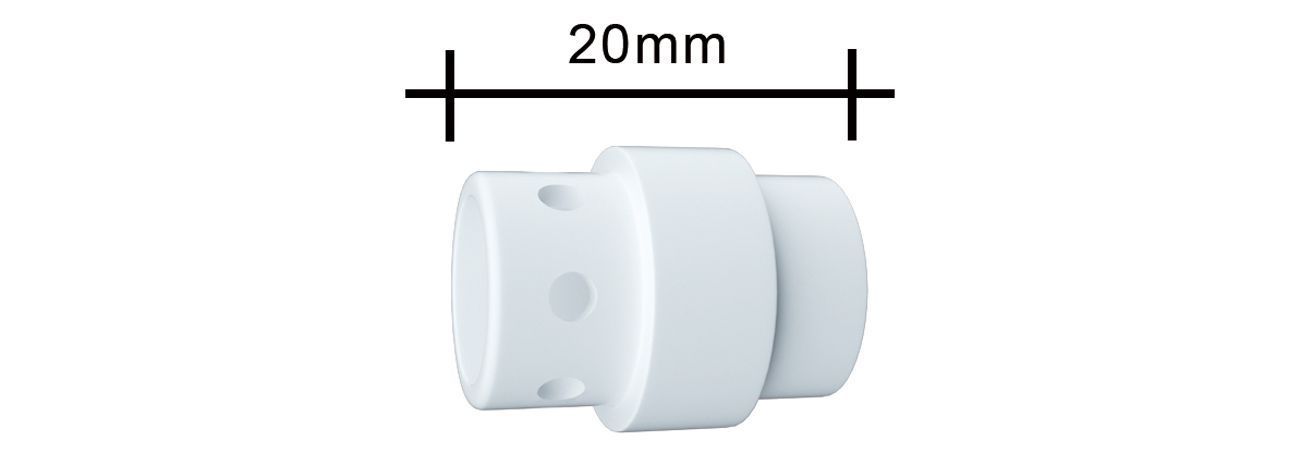

Gas Diffuser(20pcs/Bag)
Part Number GSW-MIG-AP-70001

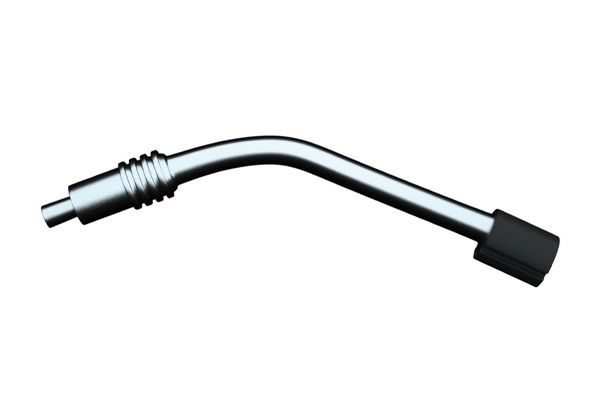

Swan Neck(10pcs/Bag)
Part Number NEP-MIG-AP-60015

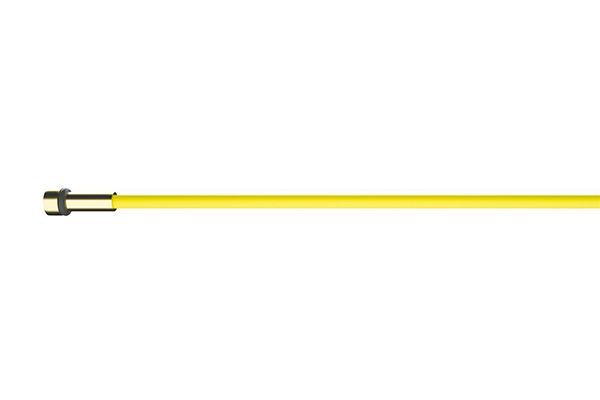

Liner
Description Part Number
Liner,for Wire 1.0-1.2,  3.2M GSW-MIG-AP-80005
Liner,for Wire 1.0-1.2,  3.5M GSW-MIG-AP-80006
Liner,for Wire 1.0-1.2,  5.2M GSW-MIG-AP-80007
Liner,for Wire 1.0-1.2,  5.5M GSW-MIG-AP-80008
Liner,for Wire 1.0-1.2,  3.2M 82B GSW-MIG-AP-80017
Liner,for Wire 1.0-1.2,  3.5M 82B GSW-MIG-AP-80018
Liner,for Wire 1.0-1.2,  5.2M 82B GSW-MIG-AP-80019
Liner,for Wire 1.0-1.2,  5.5M 82B GSW-MIG-AP-80020







Packing Details
