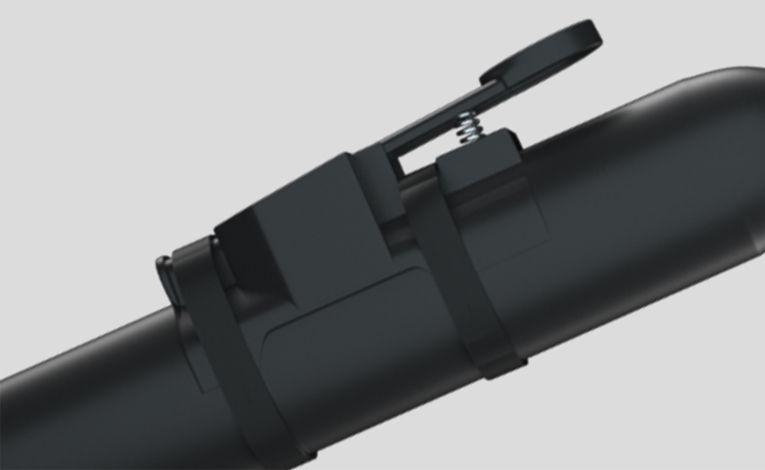

Senior Micro Switch,
Excellent consumable life.
Ergonomically Superior Handle Designs.
Handles are created with user comfort inmind,minimizes operator fatigue and withstands continuous, heavy-duty welding applications.
Superior end-connector.
Effectively extend service life, not reconciled to ordinary.

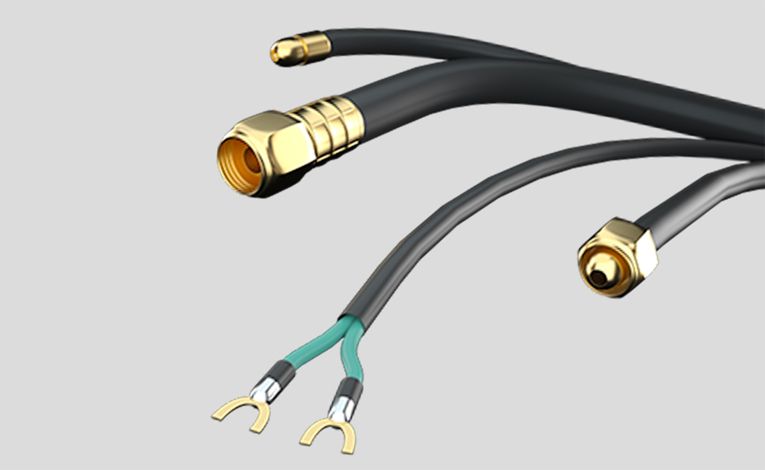

Hoses and Cable Supports.
Get star hose and cable are designed to ensure flexibility and durability even under extreme conditions.

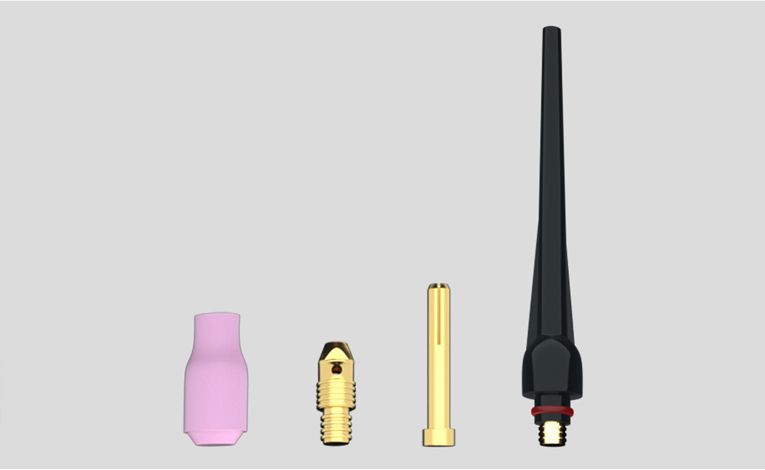

Wide Selection of Accessories,
High-quality,precision machined collets,colletbodies, and nozzle complement each torch series.
Product Detail
We can supply any cable termination according to customer request.
Torch Complete | ||
Torch could be customized from handle to end connection:Length(4m,8m or as required),Handle type(V-type,P-type,F-type,FV-type),End Connection(M6*1.5, Euro cable connector,etc) |

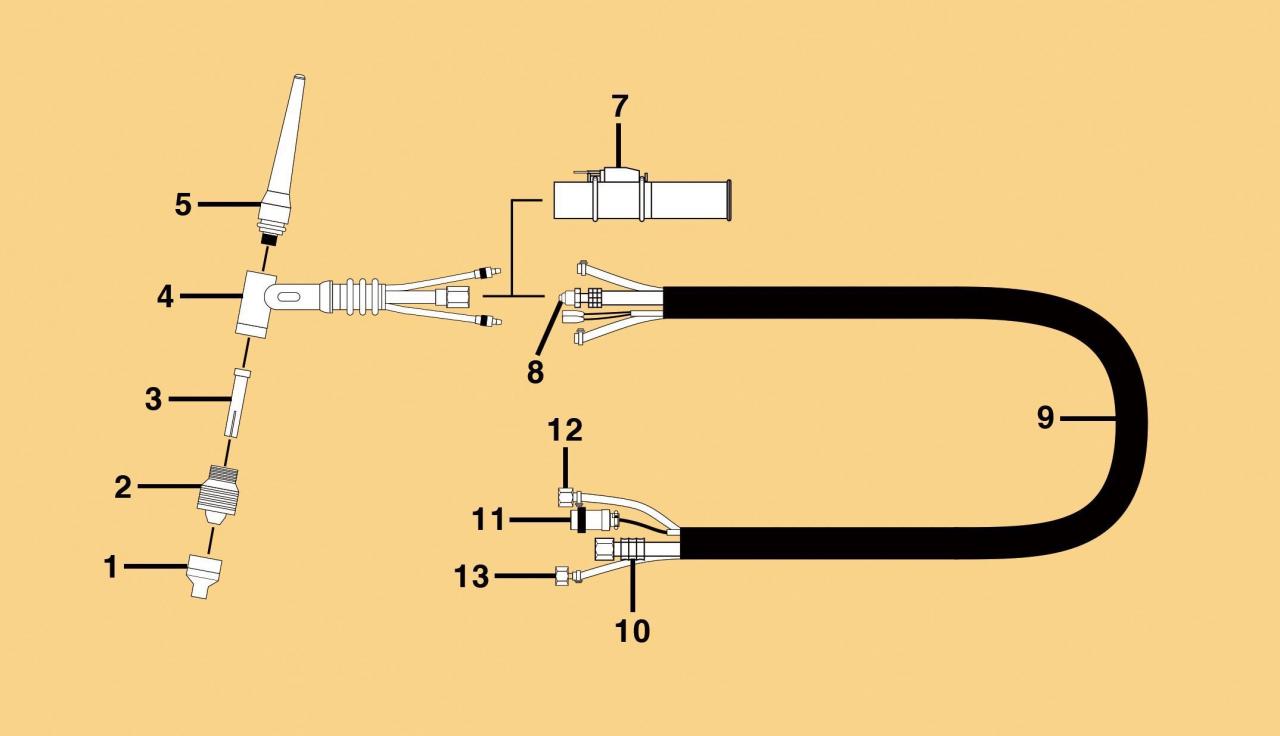

No. | Description | Part Number |
1 | Ceramic Nozzle | NEP-TIG-AP-20037 |
2 | Collet | NEP-TIG-AP-30031 |
3 | Collet Body 11WP65 | NEP-TIG-AP-40024 |
4 | Torch Body | GSW-TIG-AP-60040 |
5 | Long Back Cap 56V44 | NEP-TIG-AP-11010 |
6 | Short Back Cap 56V45 | NEP-TIG-AP-13006 |
7 | Switch | GSW-TIG-AP-15001 |
8 | Top Connector(Φ8,Φ10) | NEP-OTH-AP-17016/17 |
9 | Cable Assembly | |
10 | M16*1.5 Bottom Connector | NEP-OTH-AP-170023+17029 |
11 | 2 Pin Plug | NEP-OTH-AP-29001 |
12 | M10*1 Water Connector | NEP-OTH-AP-170062+17065 |
13 | M12*1 Gas Connector | NEP-OTH-AP-170063+17064 |

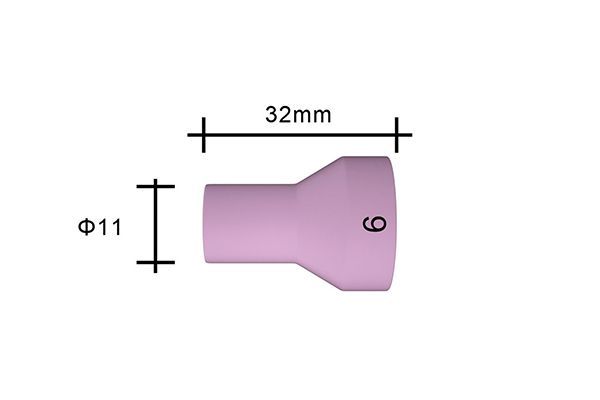

Ceramic Nozzle | |
Size | Part Number |
14N57 #4 D6.5*32MM | NEP-TIG-AP-20037 |
14N58 #5 D8.0*32MM | NEP-TIG-AP-20068 |
14N59 #6 D9.5*32MM | NEP-TIG-AP-20038 |
14N60 #7 D11.0*32MM | NEP-TIG-AP-20069 |
14N61 #8 D12.5*32MM | NEP-TIG-AP-20060 |
14N61-10 #10 D16.0*32MM | NEP-TIG-AP-20039 |
14N61-12 #12 D19.0*32MM | NEP-TIG-AP-20040 |

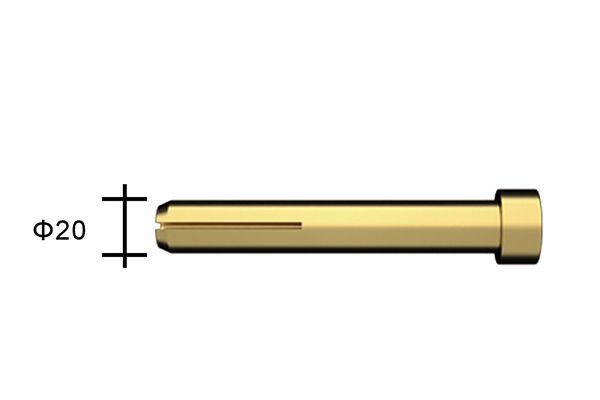

Collet | |
Size | Part Number |
85Z14 1.6 L=60mm | NEP-TIG-AP-30031 |
85Z15 2.4 L=60mm | NEP-TIG-AP-30032 |
85Z16 3.2 L=60mm | NEP-TIG-AP-30021 |
85Z17 4.0 L=60mm | NEP-TIG-AP-30037 |
85Z18 4.8 L=60mm | NEP-TIG-AP-30033 |
85Z19 6.4 L=60mm | NEP-TIG-AP-30034 |

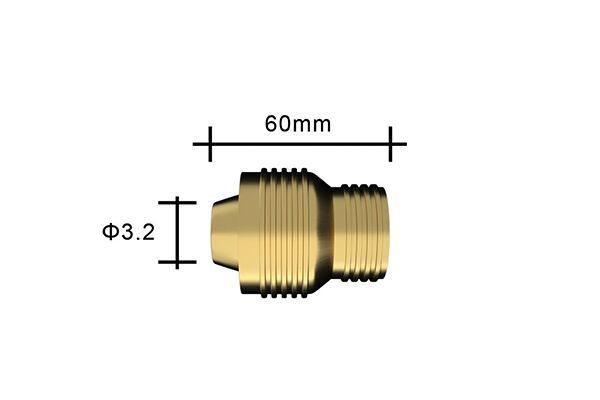

Collet Body 11WP65 | |
Size | Part Number |
φ20 | NEP-TIG-AP-40024 |

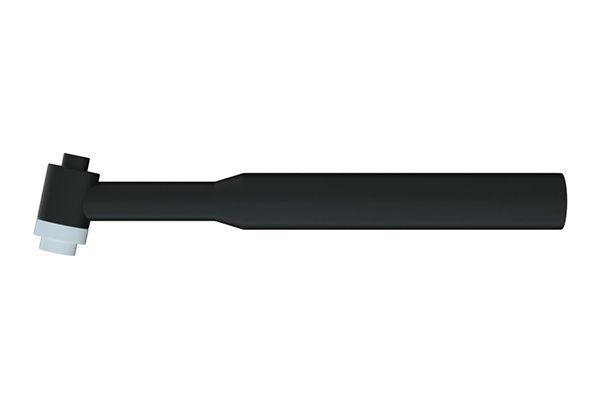

Torch Body | |
Size | Part Number |
WP-12 | NEP-TIG-AP-60040 |
Packing Details
Product Parameters
WP-12
500 amp AC/DC(100% duty cycle)
Electrode Range:1.6-6.4mm
Length: 3m,5m or as required
