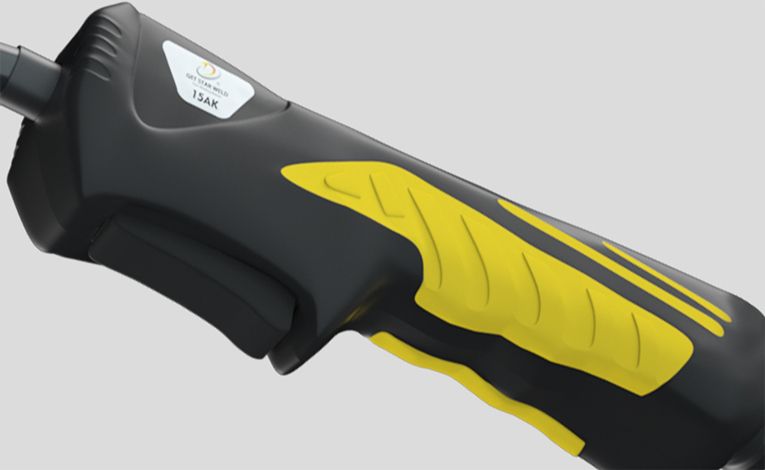

Comfort Grip Head Design,
Ergonomic contact points for thumb and fingers.Provides a more comfortable grip and reduce operator fatigue.

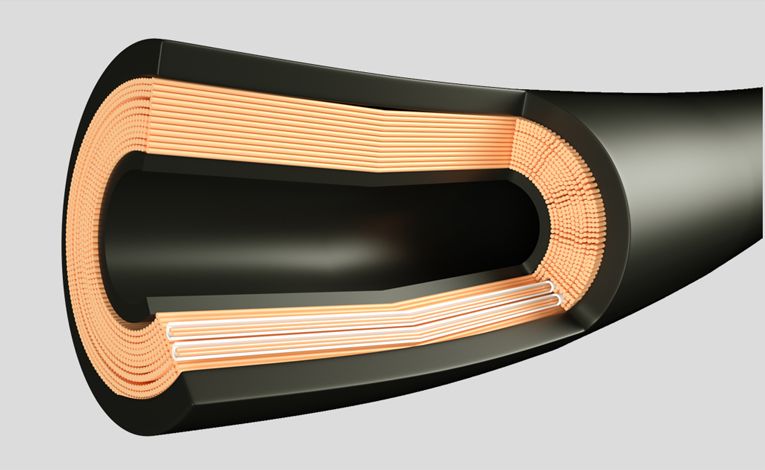

Sufficient Heavy-duty Cable and Copper Construction.
Ensure flexibility and durability even under extreme conditions.
Highly conductive copper components ensure superior current carrying capacity and effectively dissipate heat for longer trouble-free performance.

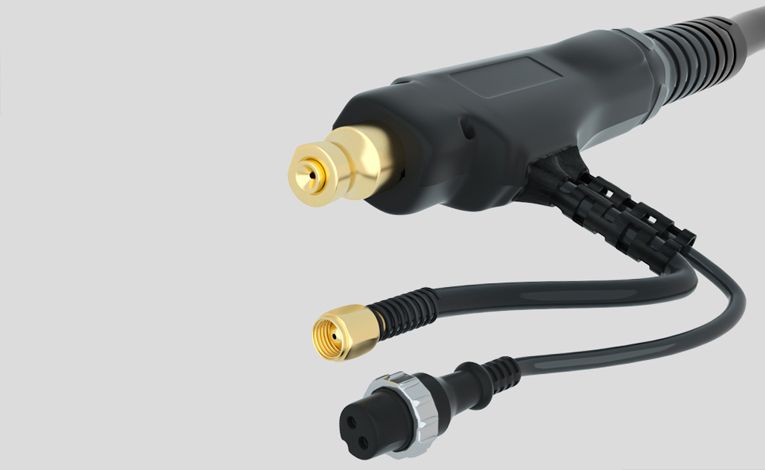

Premium Quality End Connector
To improve gas seal integrity in gas applications, the Euro end connector has been redesigned.

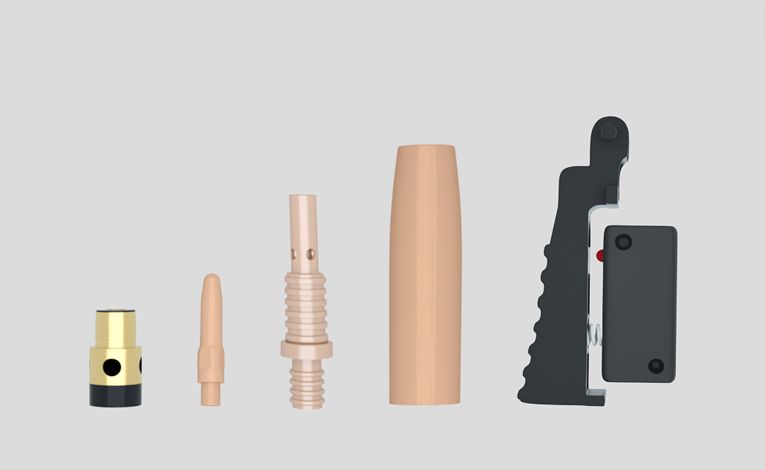

Superior Parts.
Conductor,switch，gas nozzle,contact tip,swan neck are all superior quality.long life service. save repair costs.
Product Detail
| The Product Style | ||
| Torch Complete | Handle | Part Number |

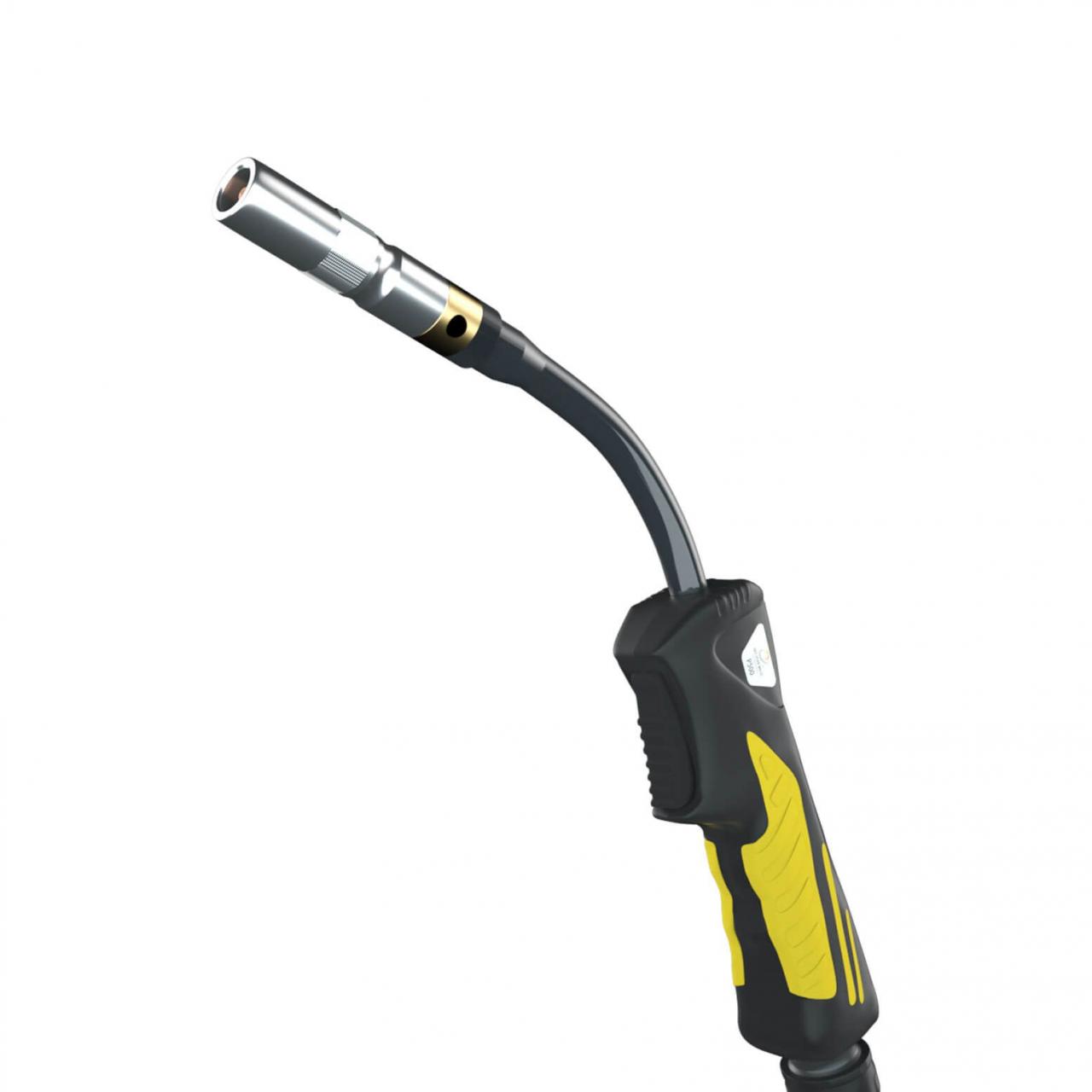

| GSW 500 3M PANA CONNECTION | Yellow-Black Type | GSW-MIG-AP-10050 |
| GSW 500 4M PANA CONNECTION | Yellow-Black Type | GSW-MIG-AP-10051 |
| GSW 500 5M PANA CONNECTION | Yellow-Black Type | GSW-MIG-AP-10052 |
| GSW 500 3M EURO CONNECTION | Yellow-Black Type | GSW-MIG-AP-10131 |
| GSW 500 4M EURO CONNECTION | Yellow-Black Type | GSW-MIG-AP-10132 |
| GSW 500 5M EURO CONNECTION | Yellow-Black Type | GSW-MIG-AP-10133 |

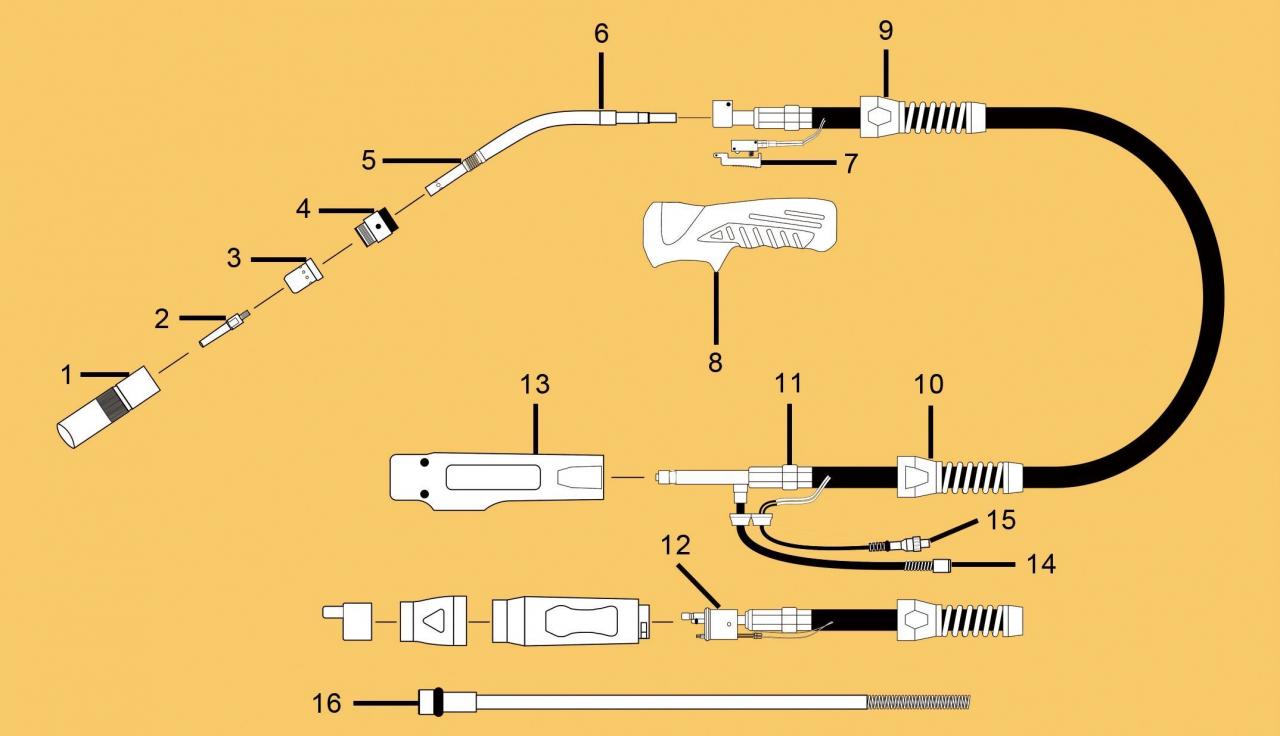

| No. | Description | Part Number |
| 1 | Gas Nozzle | GSW-MIG-AP-20035 |
| 2 | Contact Tip | GSW-MIG-AP-30038 |
| 3 | Gas Diffuser | GSW-MIG-AP-70005 |
| 4 | Insulator | GSW-MIG-AP-50006 |
| 5 | Contact Tip Holder | GSW-MIG-AP-40031 |
| 6 | Swan Neck | NEP-MIG-AP-60017 |
| 7 | Switch | NEP-MIG-AP-12019+12020 |
| 8 | Front Handle | NEP-MIG-AP-12007 |
| 9 | Front Cable Support | NEP-MIG-AP-12027 |
| 10 | Back Cable Support | NEP-MIG-AP-12028 |
| 11 | Euro Central Connector Plug | NEP-MIG-AP-16004 |
| 12 | Pana Central Connector Plug | NEP-MIG-AP-16005 |
| 13 | Back Handle | NEP-MIG-AP-12023 |
| 14 | Gas Inlet Tube+Nut 9/16-18UNF | NEP-MIG-AP-16033 |
| 15 | Control Lead +2 Pin Plug | NEP-MIG-AP-16007 |
| 16 | Liner | GSW-MIG-AP-80029 |

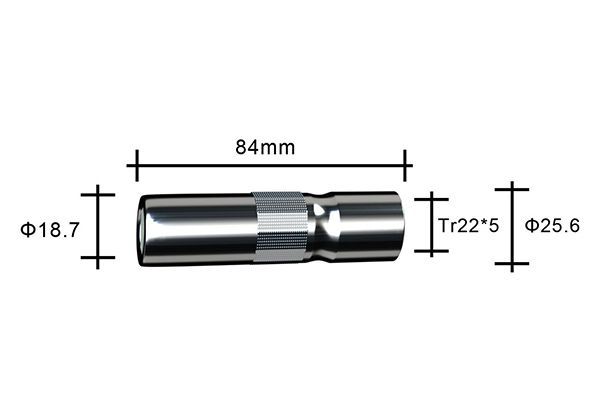

| Gas Nozzle（10pcs/Bag） | ||
| Size | Description | Part Number |
| Φ18.7 | Gas Nozzle | GSW-MIG-AP-20035 |

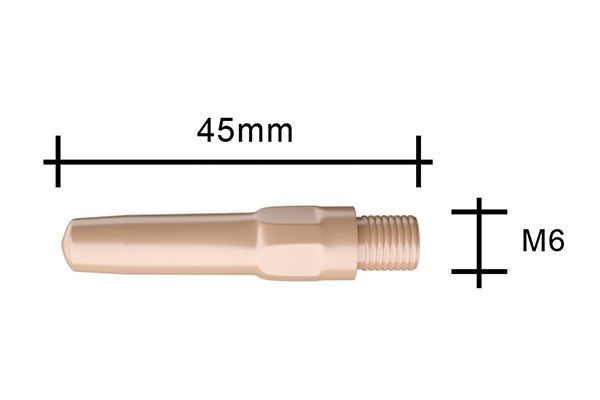

| Contact Tip E-cu（20pcs/Bag） | |
| Description | Part Number |
| M6*45*Φ0.8 Contact Tip E-Cu | GSW-MIG-AP-30038 |
| M6*45*Φ0.9 Contact Tip E-Cu | GSW-MIG-AP-30039 |
| M6*45*Φ1.0 Contact Tip E-Cu | GSW-MIG-AP-30040 |
| M6*45*Φ1.2 Contact Tip E-Cu | GSW-MIG-AP-30023 |
| Optional for CuCrZr Material | |
| Gas Diffuser(50pcs/Bag) | |
| Part Number | GSW-MIG-AP-70005 |

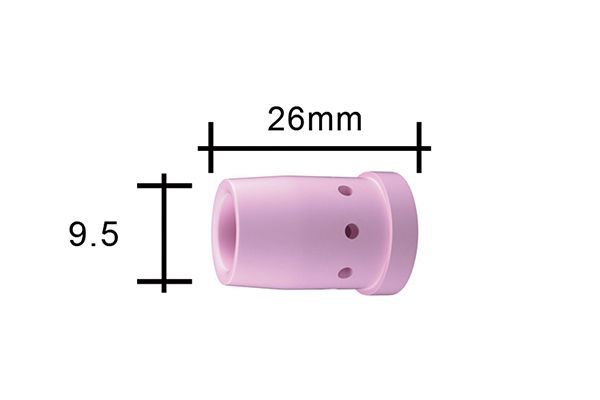

| Insulator （10pcs/Bag） | |
| Part Number | GSW-MIG-AP-50006 |

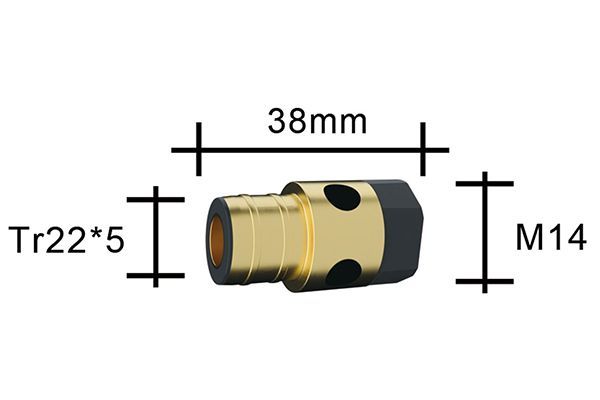

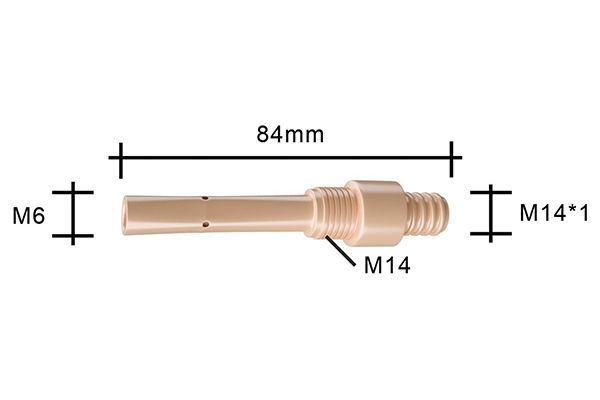

| Contact Tip Holder（20pcs/Bag） | |
| Description | Part Number |
| Contact Tip Holder （Brass) | GSW-MIG-AP-40031 |
| Contact Tip Holder （Copper） | GSW-MIG-AP-40035 |

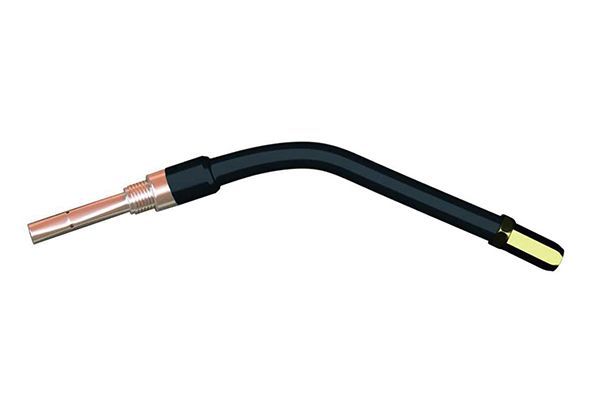

| Swan Neck（10pcs/Bag） | |
| Part Number | NEP-MIG-AP-60017 |

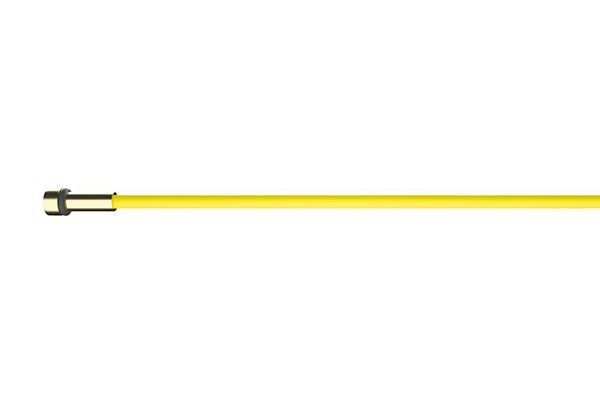

| Liner | |
| Description | Part Number |
| Liner ，for Wire 1.2-1.6, 3.2M | GSW-MIG-AP-80029 |
| Liner ，for Wire 1.2-1.6, 3.5M | GSW-MIG-AP-80030 |
| Liner ，for Wire 1.2-1.6, 5.2M | GSW-MIG-AP-80031 |
| Liner ，for Wire 1.2-1.6, 5.5M | GSW-MIG-AP-80032 |
| Liner ，for Wire 1.2-1.6, 3.2M 82B | GSW-MIG-AP-80041 |
| Liner ，for Wire 1.2-1.6, 3.5M 82B | GSW-MIG-AP-80042 |
| Liner ，for Wire 1.2-1.6， 5.2M 82B | GSW-MIG-AP-80043 |
| Liner ，for Wire 1.2-1.6, 5.5M 82B | GSW-MIG-AP-80044 |
Packing Details
Product Parameters
PANA 500A;
Compatible Torch and Parts for Panasonic
Rating：500A CO2/350A Mixed Gases
Duty Cycle：60%
Wire Size：1.2-1.6mm
Length: 3m,5m or as required
