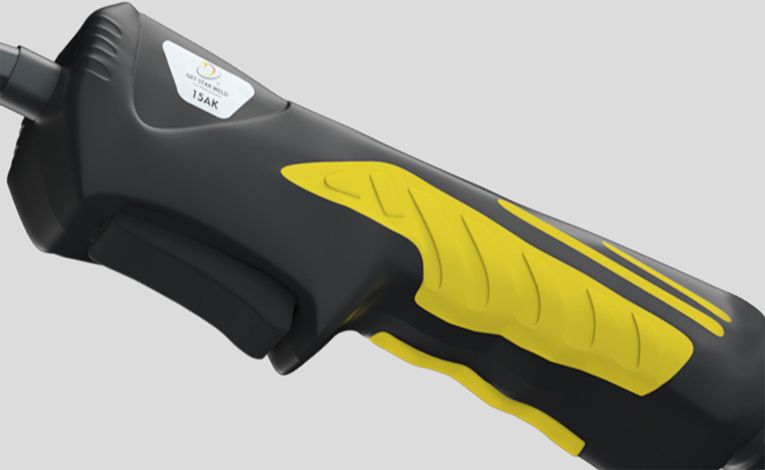

Comfort Grip Head Design,
Ergonomic contact points for thumb and fingers.Provides a more comfortable grip and reduce operator fatigue.

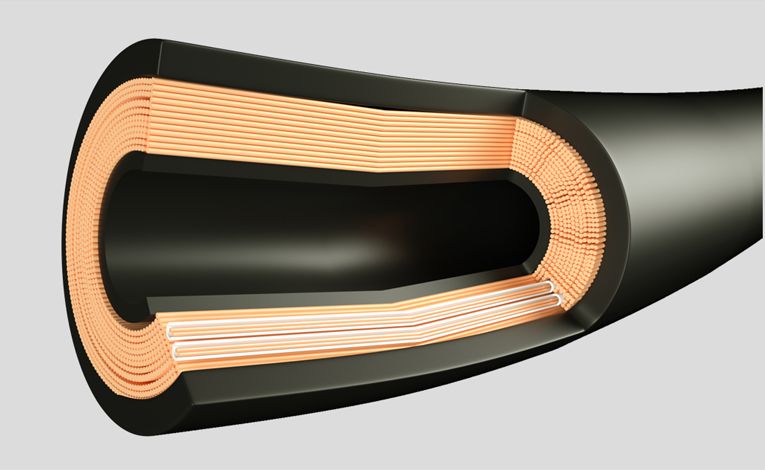

Sufficient Heavy-duty Cable and Copper Construction.
Ensure flexibility and durability even under extreme conditions.
Highly conductive copper components ensure superior current carrying capacity and effectively dissipate heat for longer trouble-free performance.

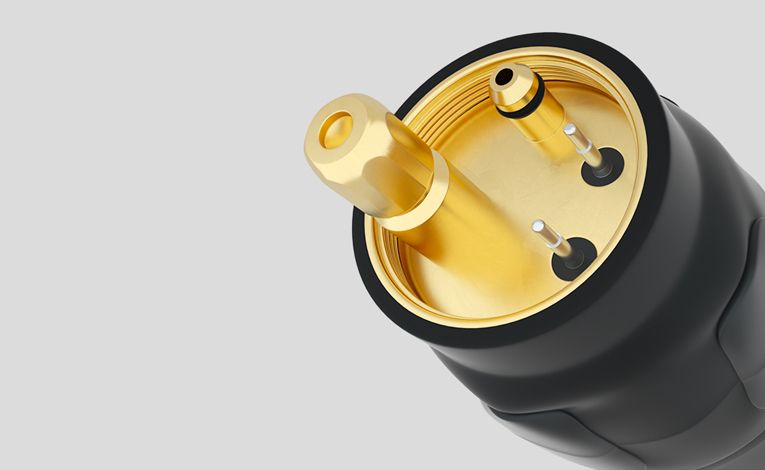

Premium Quality End Connector
To improve gas seal integrity in gas applications, the Euro end connector has been redesigned.

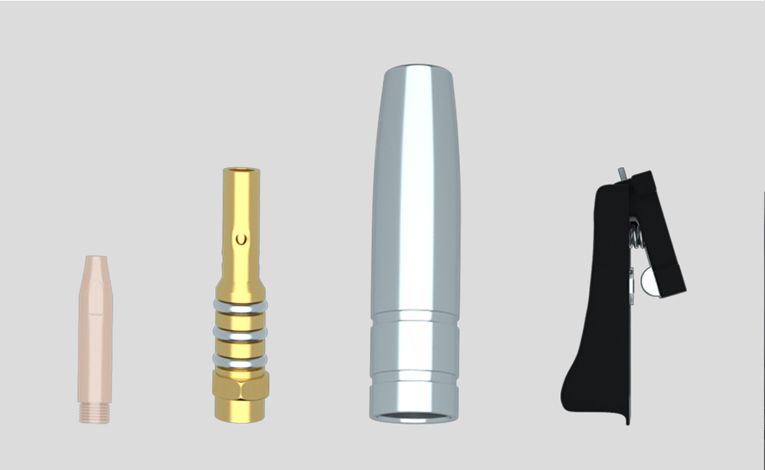

Superior Parts.
Conductor,switch，gas nozzle,contact tip,swan neck are all superior quality.long life service. save repair costs.
Product Detail
| The Product Style | ||
| Torch Complete | Handle | Part Number |
| GSW 24KD 3M | Yellow-Black Type | GSW-MIG-AP-10004 |
| GSW 24KD 4M | Yellow-Black Type | GSW-MIG-AP-10005 |
| GSW 24KD 5M | Yellow-Black Type | GSW-MIG-AP-10006 |

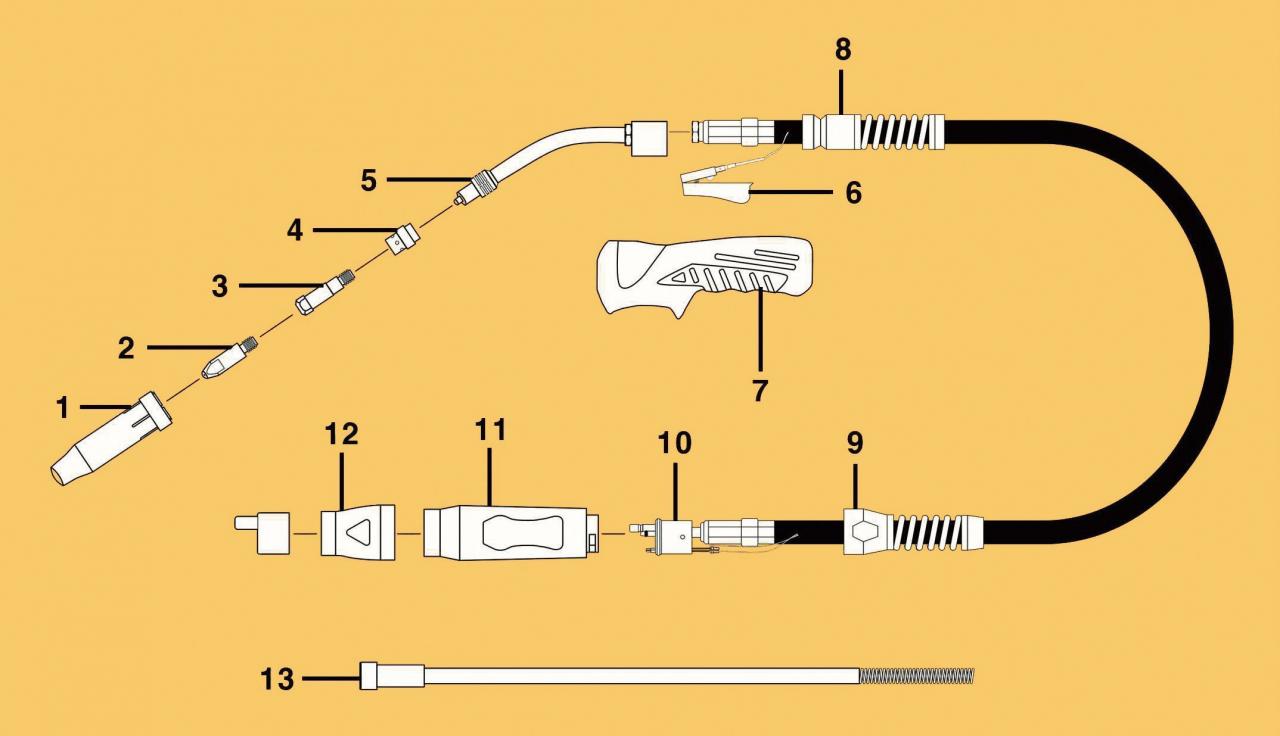

| No. | Description | Part Number |
| 1 | Gas Nozzle | GSW-MIG-AP-20011 |
| 2 | Contact Tip | GSW-MIG-AP-30010 |
| 3 | Contact Tip Holder | GSW-MIG-AP-40006 |
| 4 | Gas Diffuser | GSW-MIG-AP-70001 |
| 5 | Swan Neck | NEP-MIG-AP-60015 |
| 6 | Switch | NEP-MIG-AP-12018 |
| 7 | Front Handle | NEP-MIG-AP-12006 |
| 8 | Front Cable Support | NEP-MIG-AP-12025 |
| 9 | Back Cable Support | NEP-MIG-AP-12026 |
| 10 | Euro Central Connector Plug | NEP-MIG-AP-16004 |
| 11 | Back Handle | NEP-MIG-AP-12021 |
| 12 | Adaptor Nut | NEP-MIG-AP-12024 |
| 13 | Liner | GSW-MIG-AP-80005 |

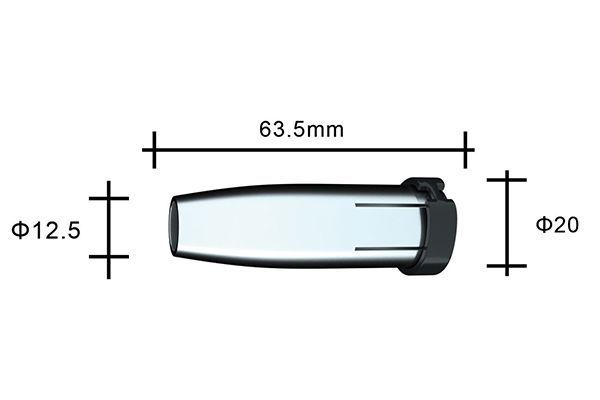

| Gas Nozzle（5pcs/Bag） | ||
| Size | Description | Part Number |
| Φ17 | Cylindrical Nozzle | GSW-MIG-AP-20045 |
| Φ12.5 | Conical Nozzle | GSW-MIG-AP-20011 |
| Φ10 | Tapered Nozzle | GSW-MIG-AP-20056 |

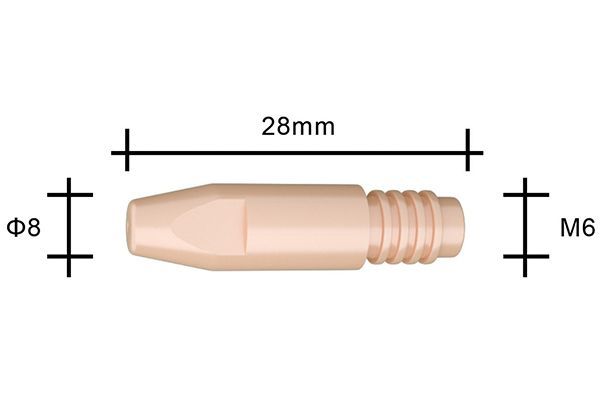

| Contact Tip E-cu（50pcs/Bag） | |
| Description | Part Number |
| M6*28*Φ0.8 Contact Tip E-Cu | GSW-MIG-AP-30010 |
| M6*28*Φ0.9 Contact Tip E-Cu | GSW-MIG-AP-30011 |
| M6*28*Φ1.0 Contact Tip E-Cu | GSW-MIG-AP-30012 |
| M6*28*Φ1.2 Contact Tip E-Cu | GSW-MIG-AP-30013 |
| M6*28*Φ1.6 Contact Tip E-Cu | GSW-MIG-AP-30030 |
| Optional for CuCrZr Material | |

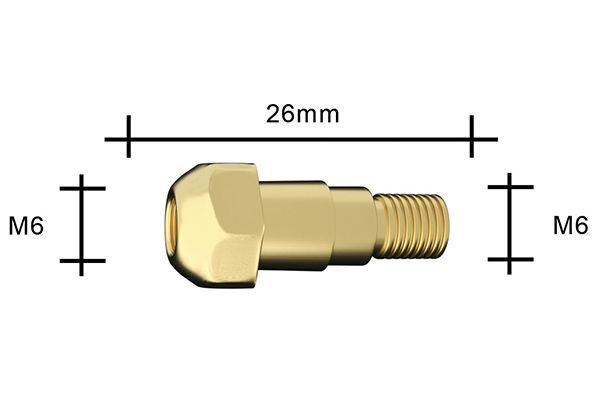

| Gas Nozzle Holder（20pcs/Bag） | |
| Part Number | GSW-MIG-AP-40006 |
| Gas Diffuser（20pcs/Bag） | |
| Part Number | GSW-MIG-AP-70001 |

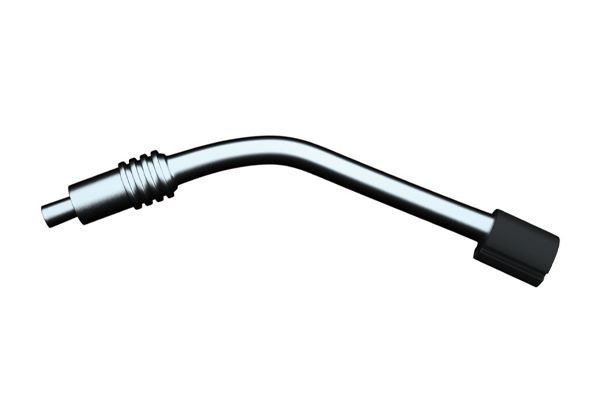

| Swan Neck（10pcs/Bag） | |
| Part Number | NEP-MIG-AP-60015 |

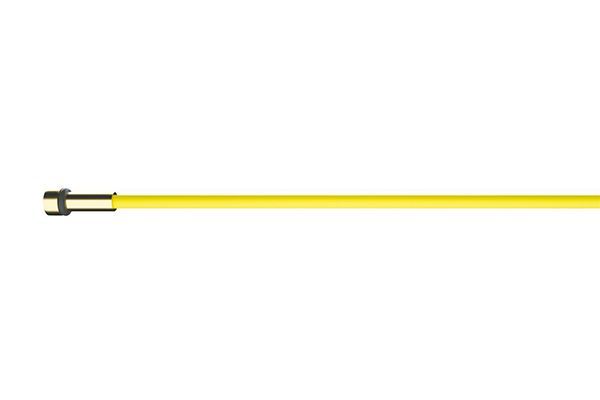

| Liner | |
| Description | Part Number |
| Liner，for Wire 1.0-1.2, 3.2M | GSW-MIG-AP-80005 |
| Liner，for Wire 1.0-1.2, 3.5M | GSW-MIG-AP-80006 |
| Liner，for Wire 1.0-1.2, 5.2M | GSW-MIG-AP-80007 |
| Liner，for Wire 1.0-1.2, 5.5M | GSW-MIG-AP-80008 |
| Liner，for Wire 1.0-1.2, 3.2M 82B | GSW-MIG-AP-80017 |
| Liner，for Wire 1.0-1.2, 3.5M 82B | GSW-MIG-AP-80018 |
| Liner，for Wire 1.0-1.2, 5.2M 82B | GSW-MIG-AP-80019 |
| Liner，for Wire 1.0-1.2, 5.5M 82B | GSW-MIG-AP-80020 |
Packing Details
Product Parameters
EURO 24KD
Compatible Torch and Parts for BINZEL
Rating：250A CO2/220A Mixed Gases
Duty Cycle：60%
Wire Size：0.8-1.2mm
Length: 3m,5m or as required
